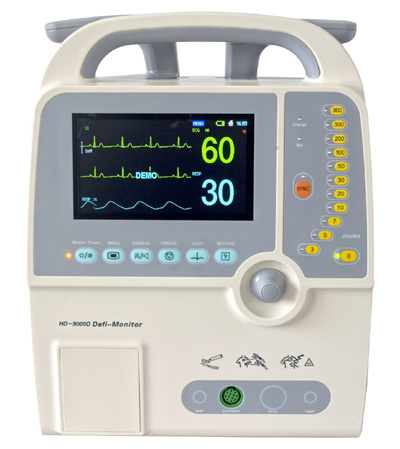

HD-9000D Monophasic Defibrillator Monitor With Screen

The HD-9000D Monophasic Defibrillator Monitor is a portable manual defibrillator designed for emergency cardiac resuscitation and patient monitoring in hospitals, clinics, ambulances, emergency departments and critical-care environments. It supports manual synchronized and asynchronous defibrillation, with selectable energy levels ranging from 0 to 360 joules. The unit features a built-in colour display for ECG and monitoring parameters, reusable external adult paddles with integrated pediatric paddles, and a maximum charging time of approximately 8 seconds to 360 J according to published HD-9000D specifications. Key Features Manual external defibrillator Built-in patient monitoring screen Synchronized defibrillation mode Asynchronous defibrillation mode Monophasic waveform technology Maximum energy output of 360 joules Fast charging to 360 J in approximately 8 seconds Reusable external adult paddles Integrated pediatric paddles ECG monitoring capability Respiration monitoring High-resolution colour display Internal rechargeable battery backup Portable design with carrying handle Suitable for hospital and emergency use Specification Details Model / Art. No. HD-9000D Defibrillator Type Manual Operating Modes Synchronized and Asynchronized Output Waveform Monophasic Energy Accuracy Approx. ±1% Energy Selection 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 J Nominal Load 50 Ω Maximum Energy 360 J Charging Time Maximum 8 seconds to 360 J Paddle Type Reusable external adult paddles Pediatric Paddles Integrated Display Approx. 7-inch high-resolution colour display Display Resolution 480 × 234 ECG Leads I, II, III, aVR, aVL, aVF, V1–V6 S-T Segment Analysis Approximately -2.0 to +2.0 mV Arrhythmia Analysis Yes Respiration Measurement Thoracic impedance Standard Functions ECG / RESP / Defibrillator Main Unit Portable Dimensions Approx. 320 × 205 × 410 mm Weight Approx. 9.5 kg AC Power Supply 110 V 60 Hz / 220 V 50 Hz Vehicle Power DC 12 V Battery Rechargeable lead-acid battery Full Battery Charging Approx. 4 hours Battery Monitoring Capacity Up to approximately 120 minutes Battery Discharges Around 30 full-energy discharges
