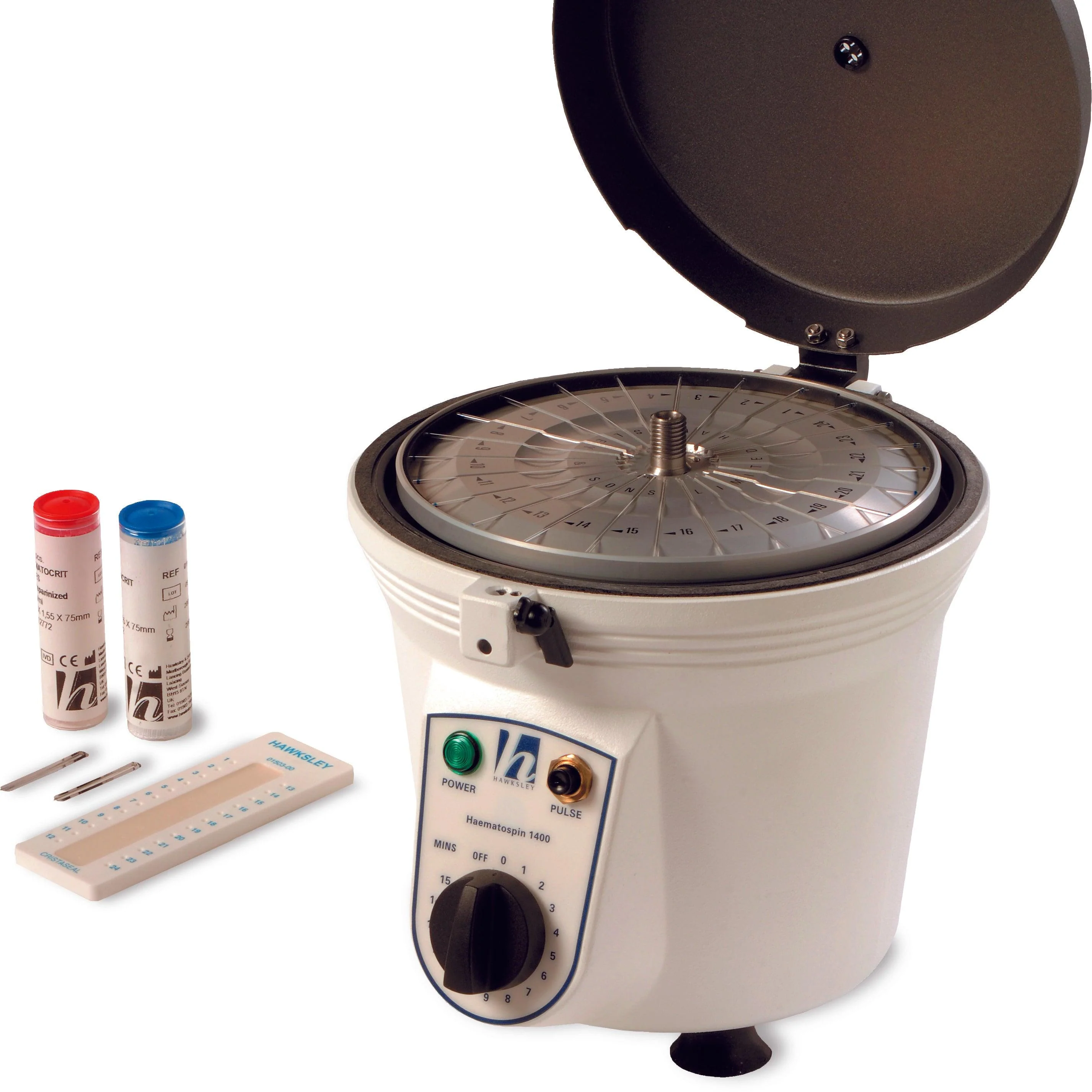

Hawksley HAEMATOSPIN 1400 Micro Haematocrit Centrifuge

The Hawksley HAEMATOSPIN 1400 Micro Haematocrit Centrifuge is a high-speed laboratory centrifuge designed primarily for rapid and reliable determination of haematocrit or packed cell volume from capillary blood samples. The unit combines a high-speed drive with a robust die-cast aluminium body, automatic braking and simple manual controls. With the standard 24-place micro-haematocrit rotor, the current Hawksley specification provides speeds of up to 12,000 rpm and a relative centrifugal force of up to 14,000 × g. Its interchangeable rotor system also allows the centrifuge to accommodate selected microtubes for microchemistry applications, making the HAEMATOSPIN 1400 more versatile than a dedicated single-purpose haematocrit centrifuge. Key Features High-speed micro-haematocrit centrifuge Up to 12,000 rpm with 24-place rotor Maximum 14,000 × g RCF with 24-place rotor 24-place micro-haematocrit rotor available Suitable for standard 75 mm capillary tubes 0–15 minute mechanical timer Timer graduated in 1-minute increments Automatic switch-off at zero Pulse operation Automatic braking Acceleration to 12,000 rpm within approximately 60 seconds Approximately 24-second braking from 12,000 rpm Heavy-duty die-cast aluminium body Steel safety lid Simple manual controls Interchangeable rotor options Compact benchtop design Designed and manufactured in the UK Technical Specifications Specification Details Brand Hawksley Model HAEMATOSPIN 1400 Equipment Type Micro Haematocrit Centrifuge Maximum Speed 12,000 rpm with 24-place rotor Maximum RCF 14,000 × g with 24-place rotor Standard Rotor 24-Place Micro Haematocrit Rotor Rotor Part Number 01971-00 Capillary Compatibility 75 mm Micro Haematocrit Capillary Tubes Acceleration 0–12,000 rpm within approx. 60 seconds Brake Automatic Brake Time Approx. 24 seconds from 12,000 rpm Timer 0–15 minutes Timer Graduation 1-minute increments Pulse Function Push-button hold-to-run Weight Approx. 5.1 kg Dimensions Approx. 23 cm H × 27 cm diameter Footprint Approx. 16 cm diameter Body Construction Die-cast aluminium Lid Construction Steel Body Finish Cream-white baked enamel Operation Intermittent Classification Class I Equipment Electrical Supply 220/240 V 50 Hz AC Power Consumption Approx. 380 W
