GenoTEK SMART-120 Fully Automated Clinical Chemistry Analyzer

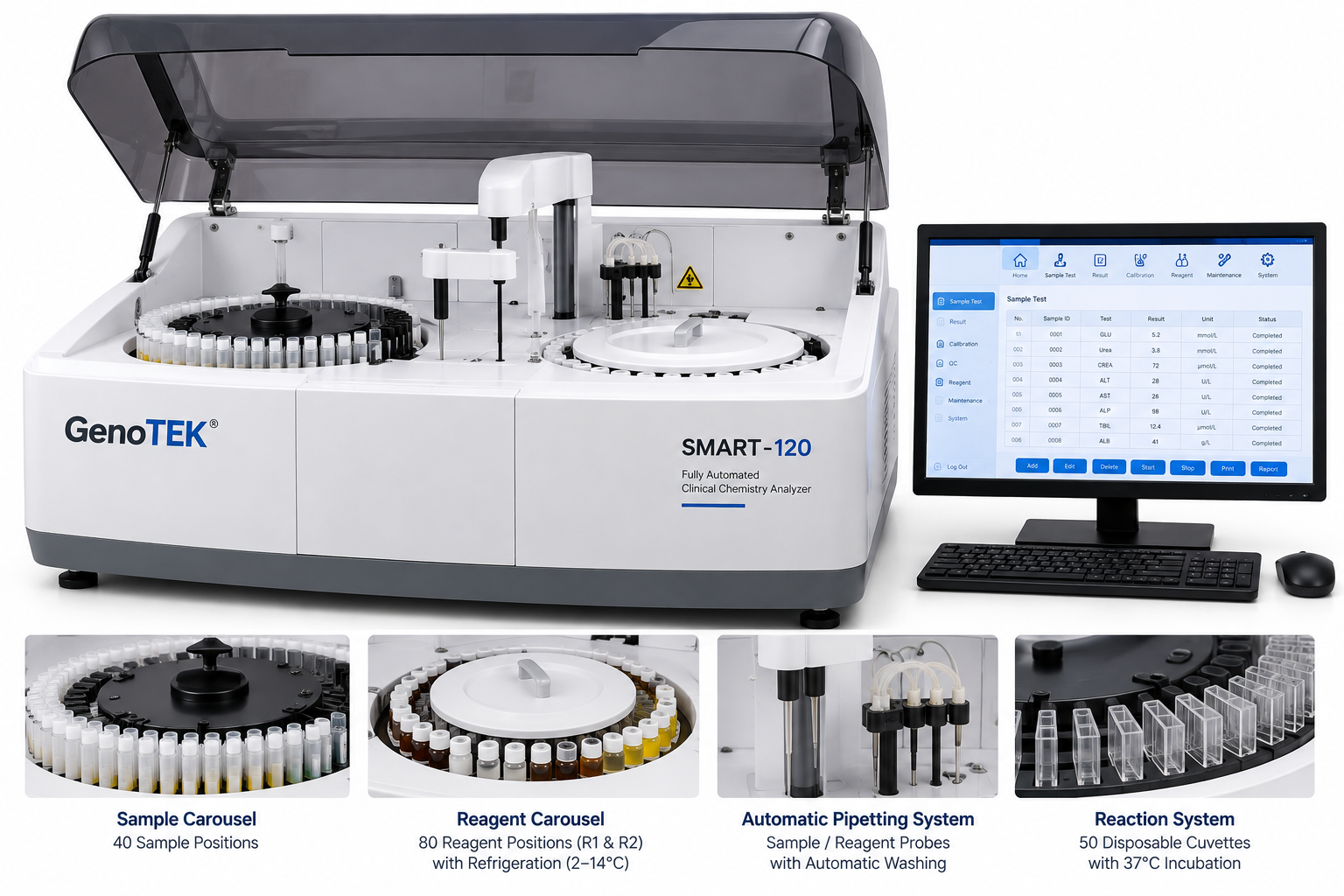

The GenoTEK SMART-120 Fully Automated Clinical Chemistry Analyzer is a compact random-access biochemistry analyzer designed for routine clinical chemistry testing in hospitals, diagnostic centres, and medical laboratories. It provides a constant throughput of approximately 120 tests per hour, supports both single- and double-reagent assays, and incorporates automatic sample/reagent dispensing, reagent cooling, disposable reaction cuvettes, photometric measurement, and programmable assay methods. Key Features - Fully automated clinical chemistry analyzer - Random-access operation - Throughput: 120 tests/hour - Open reagent system - Single- and double-reagent testing - 80 reagent positions - 40 sample positions - 50 disposable reaction cuvettes - 24-hour reagent cooling - Reagent temperature approximately 2–14°C - Automatic liquid-level detection - Automatic probe washing - High-precision ceramic dispensing syringe - Dedicated mixing system - Reaction temperature maintained at 37°C - Optional sample and reagent barcode readers - Multi-wavelength photometric system - End-point, fixed-time, and kinetic assay methods - Automatic calibration and quality-control functions - Suitable for routine and specialized clinical chemistry testing Specification Details Product Name GenoTEK SMART-120 Chemistry Analyzer Model SMART-120 Analyzer Type Fully Automated Clinical Chemistry Analyzer Operation Random Access Throughput 120 Tests/Hour Reagent Positions 80 – 40 R1 + 40 R2 Sample Positions 40 Reaction Cuvettes 50 Disposable Cuvettes Sample Containers Micro Cups / Test Tubes / Blood Collection Tubes Sample Volume Approx. 2–45 µL Reaction Volume As Low as 150 µL Reagent Cooling 2–14°C, 24 Hours Reaction Temperature 37°C ±0.1°C Light Source Halogen Lamp Wavelengths 340 / 405 / 450 / 505 / 546 / 578 / 630 / 700 nm Absorbance Range 0–4.0 Abs Assay Methods End Point / Fixed Time / Kinetic Calibration Linear / Non-Linear Sample Barcode Optional Reagent Barcode Optional Power Supply AC 110/220 V, 50/60 Hz Power Consumption Approx. 650 W
