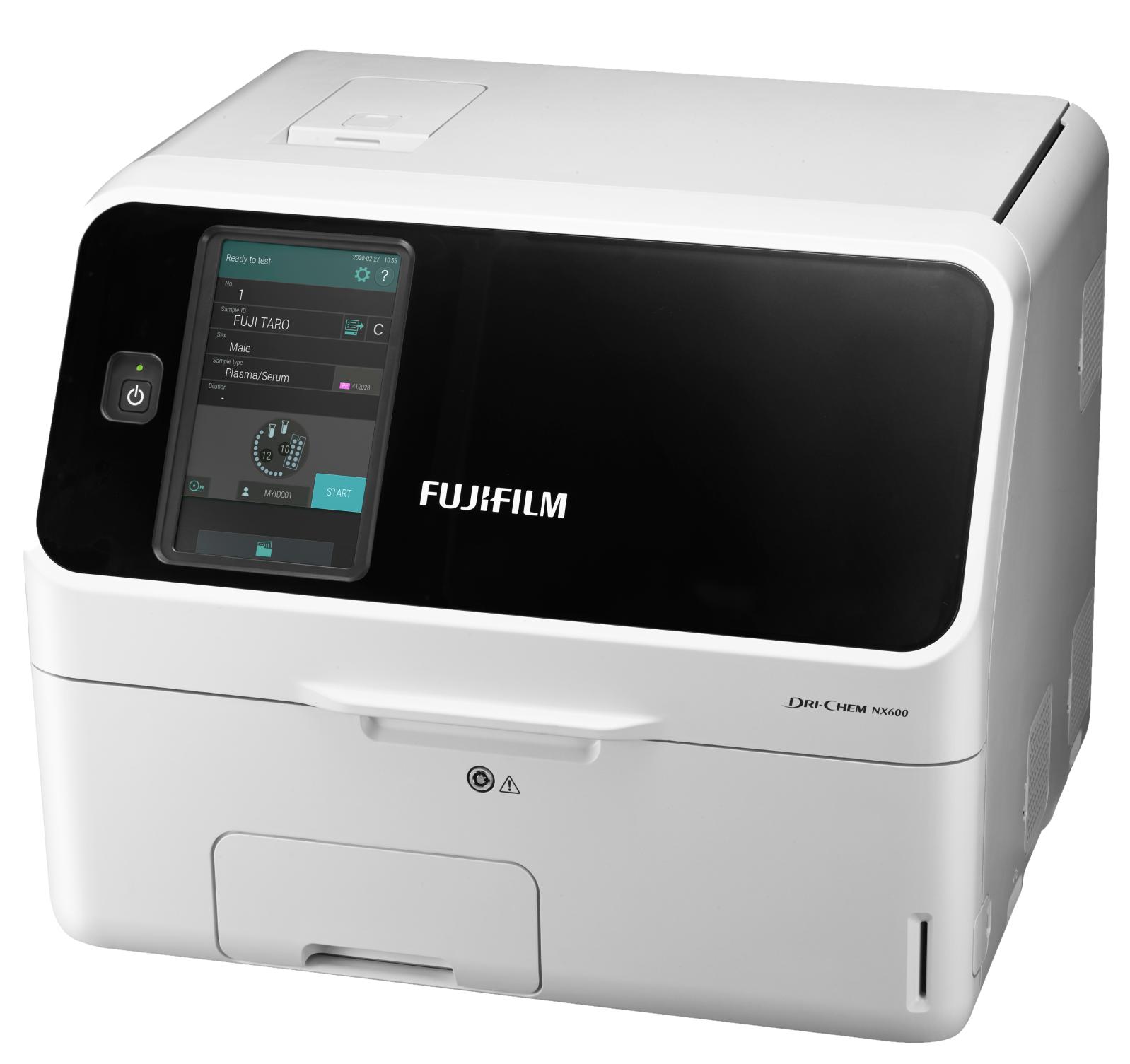

FUJIFILM DRI-CHEM NX600 Clinical Chemistry Analyzer

The FUJIFILM DRI-CHEM NX600 is a compact automated dry clinical chemistry analyzer designed for rapid biochemical and electrolyte testing in hospitals, diagnostic laboratories, clinics and point-of-care environments. The analyzer uses FUJI DRI-CHEM slides, which contain dry chemical reagents required for testing. This dry-chemistry approach simplifies workflow and reduces the need for the liquid-reagent handling associated with many conventional wet chemistry analyzers. The NX600 supports 28 colorimetric tests and 3 electrolyte tests. It achieves throughput of approximately 120 colorimetric tests per hour, increasing to 128 tests per hour when colorimetry and electrolytes are combined. Another important advantage is its low sample requirement. Most colorimetric tests require only 10 µL per test, CRP requires 5 µL, while simultaneous Na-K-Cl electrolyte measurement requires 50 µL for all three tests. Key Features Automated dry clinical chemistry analyzer Up to 128 tests/hour 28 colorimetric assays 3 electrolyte assays – Na K Cl Only 10 µL sample per standard colorimetric test CRP requires only 5 µL Electrolytes require 50 µL for 3 tests Colorimetric measurement time of approximately 2–6 minutes/test Electrolyte results in approximately 1 minute for Na-K-Cl 7-inch color touchscreen Built-in thermal printer Built-in quality-control functions Automatic dilution Plasma Filter functionality on NX600 Broad selection of compatible sample tubes RS-232 USB and LAN connectivity Compact benchtop footprint Suitable for low-volume samples and appropriate pediatric applications Specification Details Brand FUJIFILM Model DRI-CHEM NX600 Product Type Automated Clinical Chemistry Analyzer Technology Dry Chemistry Colorimetric Tests 28 Electrolyte Tests 3 – Na K Cl Colorimetry Throughput 120 Tests/Hour Combined Throughput 128 Tests/Hour Colorimetry Measurement Time 2–6 Minutes/Test Electrolyte Measurement 1 Minute/3 Tests Colorimetry Sample Volume 10 µL/Test CRP Sample Volume 5 µL/Test Electrolyte Sample Volume 50 µL/3 Tests Sample Types Serum Plasma Whole Blood for specified assays Sample Rack 1 Colorimetric Incubator Cells 13 Electrolyte Cell 1 Display 7-inch Color Touch Panel Printer Thermal Printer Connectivity RS-232 USB LAN Electrical Requirement 100–240 V ±10% 50–60 Hz Dimensions 470 × 360 × 370 mm Weight Approx. 28 kg with PF / 26 kg without PF Operating Temperature 15–32°C Operating Humidity 30–80% RH Maximum Altitude 2,000 m
