Four Bulb Operating Lamp

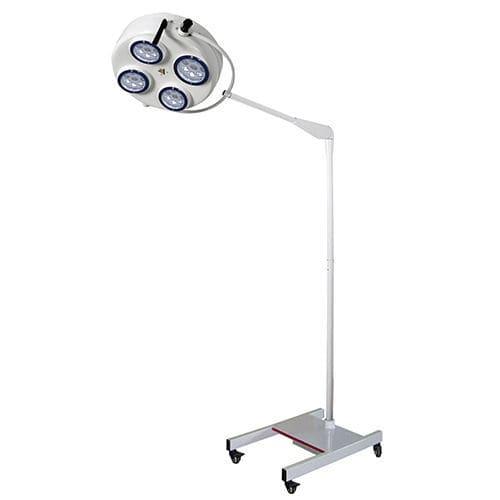

The Axiom YD01-4 Four Bulb Operating Lamp is a mobile surgical lighting system designed to provide bright, focused illumination for operating theatres, procedure rooms, delivery suites and other clinical environments. The lamp provides an illuminance range of 40,000–60,000 lux with a color temperature of 4300K ±500K, helping deliver clear visualization of the surgical field. It offers an adjustable spot diameter of 120–320 mm and an illumination depth of ≥800 mm. An eight-grade dimming system allows the light output to be adjusted according to procedural requirements. The lamp also provides a high color rendering index of ≥97%, supporting accurate visualization of tissue and anatomical structures. The YD01-4 platform is designed as a mobile floor-standing lamp with an articulating arm and wheeled base for flexible positioning. Key Features Four-bulb / four-reflector surgical light Mobile floor-standing configuration Illuminance of 40,000–60,000 lux Color temperature of 4300K ±500K High color rendering index of ≥97% Adjustable spot diameter of 120–320 mm Illumination depth of ≥800 mm Eight-grade dimming system Working distance of 55–170 cm Vertical adjustment range of 115 cm Low heat at the surgeon's head and surgical field Spring-balanced articulating arm Mobile wheeled base for easy positioning Suitable for surgical and examination procedures Specification Details Brand Axiom Model YD01-4 Product Four Bulb Operating Lamp Number of Bulbs 4 Illuminance 40,000–60,000 Lux Color Temperature 4300K ±500K Spot Diameter 120–320 mm Illumination Depth ≥800 mm Light Adjustment Eight-Grade Dimmer System Temperature at Surgeon's Head ≤2°C Temperature at Surgical Field ≤8°C Color Rendering Index ≥97% Working Distance 55–170 cm Vertical Adjustment Range 115 cm Power Supply 220V ±22V 50Hz ±1Hz Input Power 220W Bulb Power 24V / 150W Average Bulb Life 1000 Hours Mounting Mobile Floor Stand
