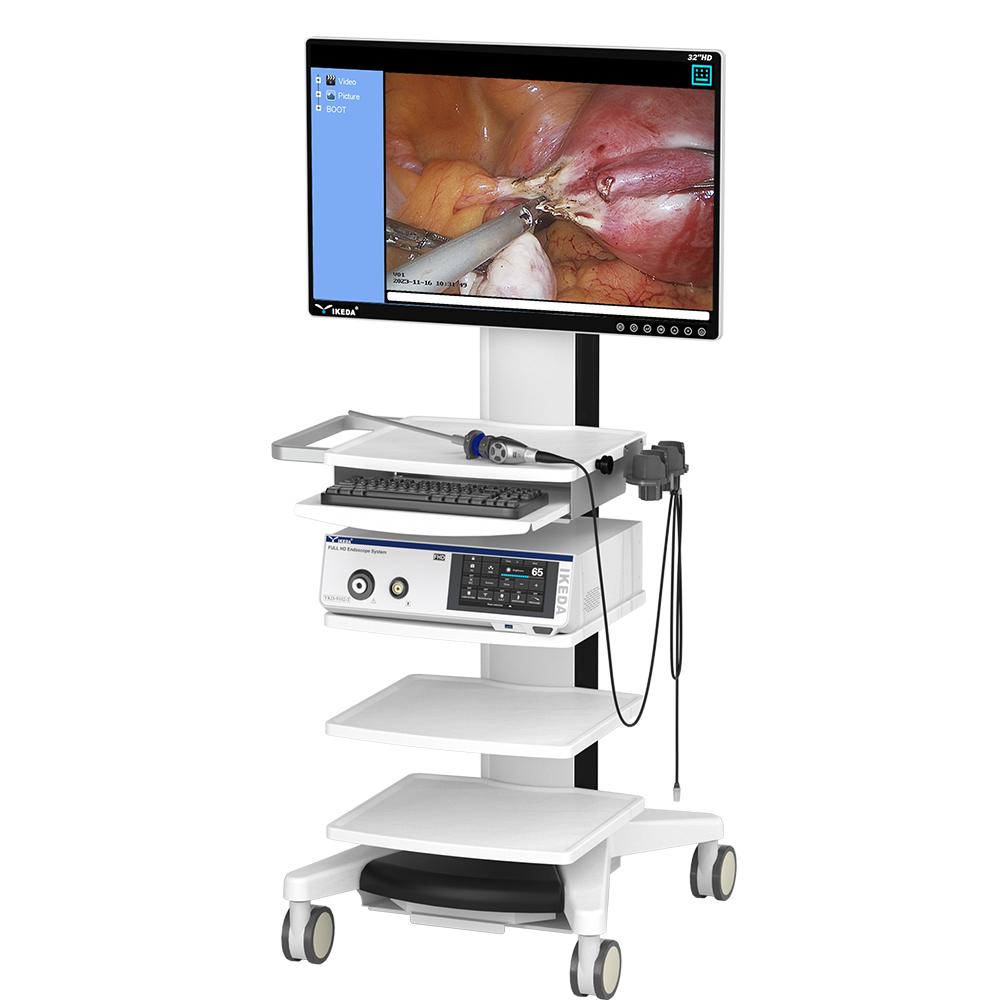

FHD Endoscopy Tower

The IKEDA YKD-9102-T Full HD Endoscopy Tower is a professional medical endoscopic imaging system designed for minimally invasive surgery and diagnostic endoscopy. It combines a Full HD camera control system, Full HD camera head and 100W LED cold light source to provide clear real-time visualization during endoscopic procedures. The YKD-9102-T provides 1920 × 1080 Full HD imaging, progressive scanning, ≥1200 TVL horizontal resolution and a 60 dB signal-to-noise ratio. It incorporates a 7-inch touchscreen, USB image/video storage and 11 selectable surgical procedure modes. A major feature is that the Full HD camera system and 100W LED cold light source are integrated into the same control unit, helping reduce the number of separate components required on the endoscopy tower. Key Features 1920 × 1080 Full HD imaging Full HD CMOS image sensor ≥1200 TVL horizontal resolution Progressive scanning 60 dB SNR 7-inch touchscreen Integrated 100W LED cold light source IPX8 waterproof Full HD camera head Full HD C-mount optical coupler 11 selectable surgical modes Automatic white balance Freeze function Digital zoom in/out Photo capture and video recording Built-in USB storage Full HD video recording at up to 60 fps H.264/MPEG-4 video recording HDMI, DVI and CVBS video outputs Compatible with a wide range of rigid and flexible endoscopes Suitable for multiple surgical specialties
