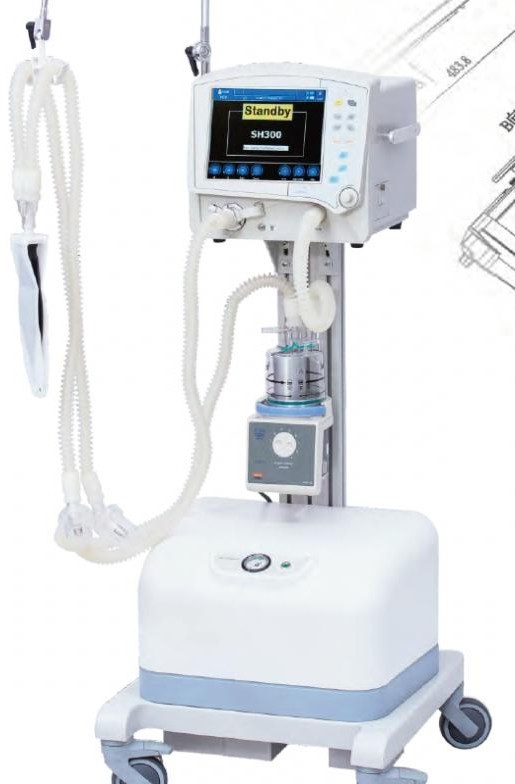

Eshero SH300 ICU Ventilator with Medical Air Compressor

The Eshero SH300 ICU Ventilator with Air Compressor is a critical-care mechanical ventilator designed to provide respiratory support for adult and paediatric patients in intensive care units, emergency departments and other hospital environments. The SH300 uses a compressed-air driven, electronically controlled ventilation system. When supplied with its medical air compressor, the system provides the compressed-air source required for air/oxygen mixing, making it particularly useful where a hospital central compressed-air supply is unavailable. The manufacturer's site confirms SH300 as part of Eshero's respiratory product line. The ventilator features a 10.4-inch TFT colour display and provides multiple ventilation modes for controlled, assisted and spontaneous ventilation. Published SH300 documentation lists modes including VCV, PCV, SIMV, CPAP/PSV, BIPAP and APRV, while some configurations also include PRVC and non-invasive ventilation modes. Key Features Built-in oil-free medical air compressor 10.4-inch TFT color touchscreen display Invasive and non-invasive ventilation (NIV) Suitable for adult, pediatric, and neonatal patients Multiple advanced ventilation modes Automatic apnea backup ventilation Electronic air-oxygen blending system Pressure and flow triggering Three real-time waveforms and two respiratory loops Integrated nebulization function Inspiratory and expiratory hold functions 100% oxygen suction function Waveform freeze function Integrated lithium battery backup (over 2 hours) Compact trolley-mounted design with support arm Durable flow sensor and expiratory valve designed for easy sterilization. Technical Specifications Display 10.4-inch TFT Color Touchscreen Patient Type Adult, Pediatric & Neonatal Ventilation Modes VCV, VCV+Sigh, PCV, PRVC, SIMV-VCV, SIMV-PCV, SIMV-PRVC, SPONT (CPAP/PSV), BIPAP*, APRV*, NIV/CPAP, NIV/PCV (*optional on some configurations) Tidal Volume 20–2500 mL Respiratory Rate 4–100 breaths/min SIMV Rate 1–40 breaths/min Inspiratory Time 0.1–12 seconds I:E Ratio 1:10 to 10:1 PEEP/CPAP 0–50 cmH₂O Pressure Support 0–70 cmH₂O Inspiratory Pressure 5–70 cmH₂O FiO₂ 21–100% Flow Trigger 1–20 L/min Pressure Trigger PEEP −20 to 0 cmH₂O Oxygen Suction 100% O₂ for 2 minutes Power Supply AC 110–240 V, 50/60 Hz Battery Backup More than 2 hours Net Weight Approximately 16 kg (main unit) Built-in Air Compressor The SH300 is equipped with a medical-grade built-in oil-free air compressor, allowing the ventilator to function without a central medical air pipeline. Benefits of the Built-in Compressor Operates in hospitals without compressed air infrastructure Suitable for emergency departments and temporary ICUs Ideal for field hospitals and mobile healthcare units Provides stable airflow for continuous ventilation Reduces dependence on external air compressors Simplifies installation and improves portability. Ventilation Modes The SH300 supports a wide range of ventilation modes, including: Volume Controlled Ventilation (VCV) VCV + Sigh Pressure Controlled Ventilation (PCV) Pressure Regulated Volume Control (PRVC) SIMV (Volume) SIMV (Pressure) SIMV (PRVC) Pressure Support Ventilation (PSV) Spontaneous Breathing (CPAP/PSV) Non-Invasive Ventilation (NIV) NIV-PCV BIPAP (optional) APRV (optional) These modes provide flexibility for routine ventilation as well as advanced respiratory support. Monitoring Parameters The SH300 continuously monitors: Inspired Tidal Volume (VTi) Expired Tidal Volume (VTe) Minute Ventilation (MV) Spontaneous Minute Ventilation Respiratory Rate Spontaneous Respiratory Rate Peak Airway Pressure (Ppeak) Mean Airway Pressure (Pmean) Plateau Pressure (Pplat) PEEP FiO₂ Lung Compliance Airway Resistance Pressure-Time waveform Flow-Time waveform Volume-Time waveform Pressure-Volume loop Flow-Volume loop. Safety Features High airway pressure alarm Low airway pressure alarm High and low minute ventilation alarms High and low tidal volume alarms High and low FiO₂ alarms Apnea alarm Oxygen and air supply failure alarm AC power failure alarm Low battery alarm Battery exhausted alarm Alarm silence function Automatic apnea backup ventilation Intelligent visual and audible alarm system. Standard Components SH300 ICU Ventilator Built-in medical air compressor Trolley with support arm 10.4-inch touchscreen display Patient breathing circuit Medical gas hoses Power cable Humidifier (configuration dependent) Face mask User manual. Optional Accessories Heated humidifier EtCO₂ monitoring module CO₂ module Additional breathing circuits Adult, pediatric, and neonatal accessories Oxygen cylinders and regulators Bacterial/viral filters Nebulizer kit External compressor (if required) Wall mounting system.
