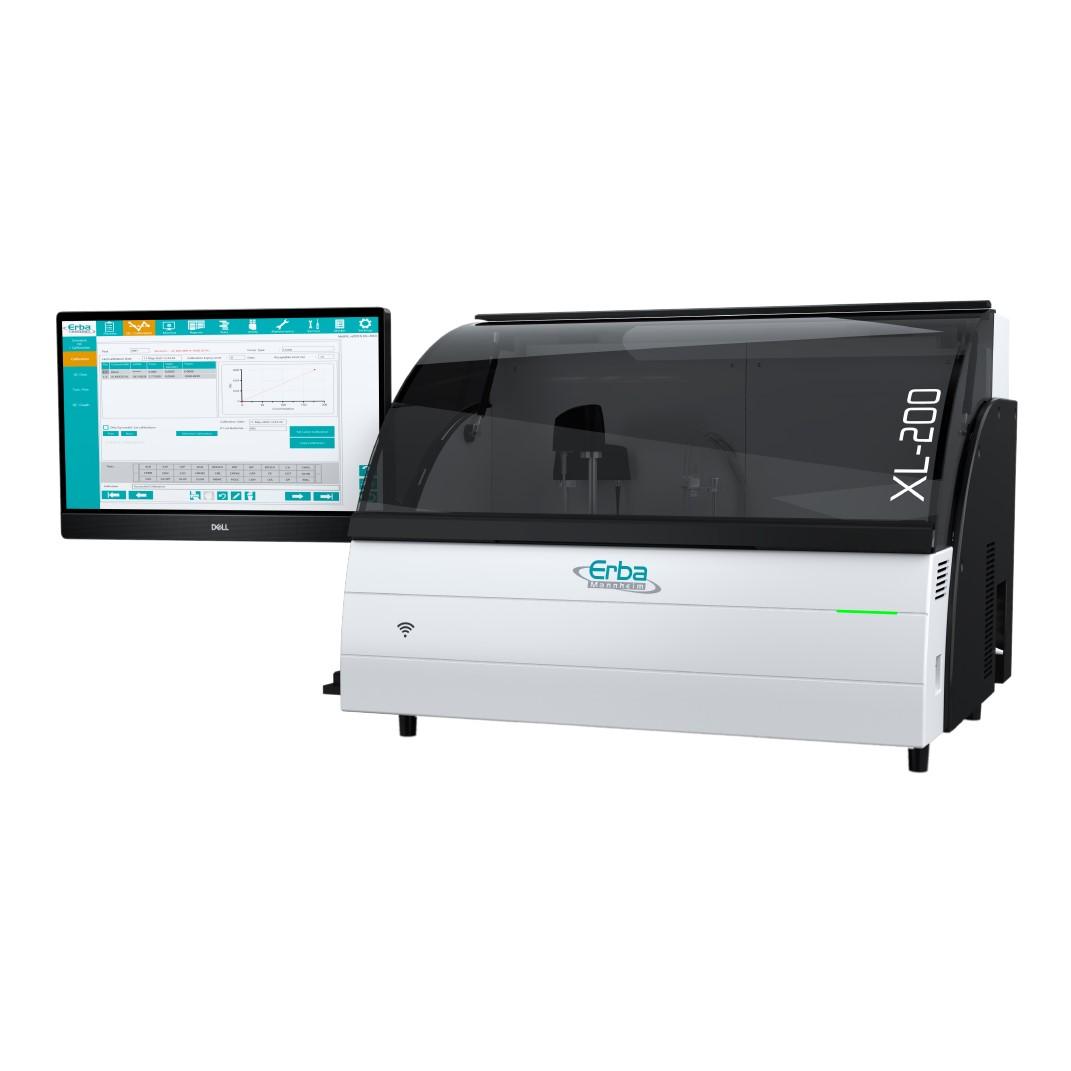

Erba XL-200 Plus Fully Automated Clinical Chemistry Analyzer

The Erba XL-200 Plus Fully Automated Clinical Chemistry Analyzer is a compact random-access biochemistry system designed for routine and specialized clinical chemistry testing in hospitals, diagnostic centres, and medical laboratories. It provides a throughput of up to 200 photometric tests per hour and can reach approximately 400 tests per hour with an optional ISE module. The system combines automatic sample and reagent handling, onboard reagent cooling, reusable reaction cuvettes, advanced quality control, barcode identification, and STAT sample processing. The XL-200 Plus is suitable for small and medium-sized laboratories requiring dependable automation, broad assay capability, and efficient reagent utilization. Key Features - Brand: Erba Mannheim - Model: XL-200 Plus - Fully automated clinical chemistry analyzer - Random-access operation - STAT sample processing - Up to 200 photometric tests/hour - Up to 400 tests/hour with optional ISE - Optional ISE for Sodium, Potassium, Chloride, and Lithium - 50 refrigerated reagent positions - 39 sample/calibrator/control positions - Automated sample and reagent dispensing - Sample volume approximately 2–70 µL - Liquid-level sensing - Clot detection - Built-in barcode reading - Automatic cuvette washing system - 45 reusable reaction cuvettes - Eight photometric wavelengths - Independent mixing system - Advanced calibration functions - Levey-Jennings quality-control charts - Westgard quality-control rules - LIS connectivity - Open-system chemistry platform - Compact laboratory design Specification Details Product Name Erba XL-200 Plus Clinical Chemistry Analyzer Brand Erba Mannheim Model XL-200 Plus Analyzer Type Fully Automated Clinical Chemistry Analyzer Operation Random Access Photometric Throughput 200 Tests/Hour Throughput with ISE Up to 400 Tests/Hour ISE Parameters Sodium / Potassium / Chloride / Lithium Sample Positions 39 Reagent Positions 50 Reagent Cooling Refrigerated, approximately 8–12°C Sample Volume Approx. 2–70 µL R1 Reagent Volume Approx. 50–300 µL R2 Reagent Volume Approx. 10–200 µL Minimum Reaction Volume Approx. 180 µL Reaction Cuvettes 45 Reusable Cuvettes Optical System Halogen Lamp Wavelengths 340 / 405 / 505 / 546 / 578 / 600 / 660 / 700 nm Assay Modes End Point / Fixed Time / Kinetic / ISE Sample Types Serum / Plasma / Urine / CSF / Other Compatible Fluids Mixing System Independent Stirrer Barcode Reader Yes STAT Testing Yes Quality Control Levey-Jennings / Westgard Rules LIS Connectivity Yes Installation Benchtop
