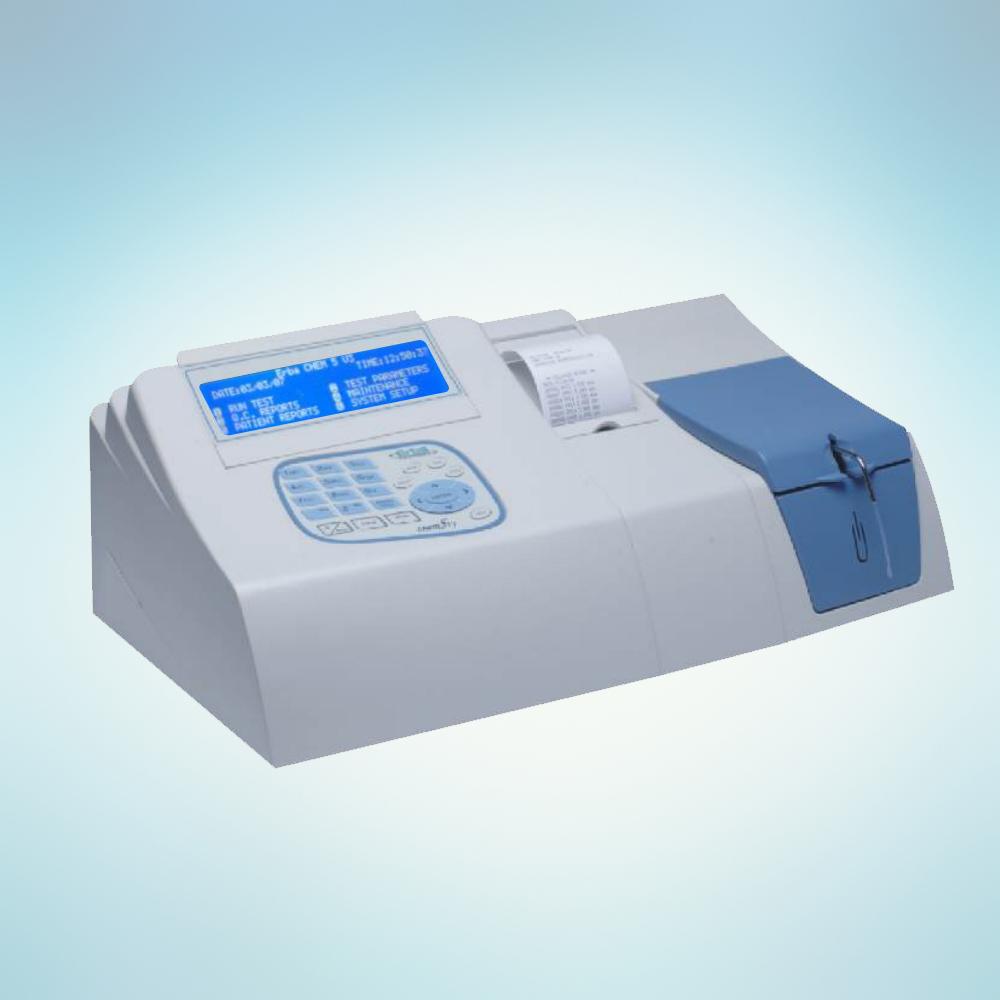

Erba Chem 5 V3 Semi-Automated Clinical Chemistry Analyzer

The Erba Chem 5 V3 Semi-Automated Clinical Chemistry Analyzer is an open-system benchtop analyzer designed for routine biochemical testing in hospitals, diagnostic centres, medical laboratories, and research facilities. It supports up to 150 user-programmable tests and multiple assay modes for endpoint, kinetic, absorbance, and non-linear chemistry applications. Om Surgical Concern The analyzer combines a multi-wavelength photometric system, programmable temperature control, integrated thermal printer, quality-control functions, and storage for up to 1,000 patient test results. Its compact design makes it suitable for small and medium-volume laboratories. Key Features - Brand: Erba - Model: Chem 5 V3 - Semi-automated clinical chemistry analyzer - Open reagent system - Up to 150 programmable test parameters - Multiple analytical and assay modes - Monochromatic and bichromatic measurement - Six wavelengths: 340, 405, 505, 546, 578 and 630 nm - Photometric range up to 0–3.0 Absorbance - Photometric resolution up to 0.001 Absorbance - Flow-cell temperature control at 25°C, 30°C and 37°C - Peltier temperature control - Triple cuvette system in documented V3 configuration - 33 µL flow-cell volume - User-programmable aspiration volume - Built-in thermal printer - 240 × 64 graphic LCD - Stores up to 1,000 test results - Extensive quality-control program - Levey-Jennings quality-control graphs - USB connectivity - Compact benchtop design Specification Details Product Name Erba Chem 5 V3 Semi-Automated Clinical Chemistry Analyzer Brand Erba Model Chem 5 V3 Analyzer Type Semi-Automated Clinical Chemistry Analyzer System Open Programmable Tests 150 Measurement Modes Monochromatic / Bichromatic Photometric Range 0–3.0 A Photometric Resolution Up to 0.001 A Wavelengths 340, 405, 505, 546, 578, 630 nm Temperature Settings 25°C / 30°C / 37°C ±0.1°C Temperature Control Peltier Cuvette System Flow Cell / Polystyrene Cuvette / Glass Tube Flow Cell Volume 33 µL Aspiration Volume 350–999 µL, programmable Pump Peristaltic Pump Display 240 × 64 Graphic LCD Printer Built-in Thermal Printer Result Storage 1,000 Test Results Calibration Curves Cubic Spline / Point-to-Point Quality Control Daily & Monthly QC / Levey-Jennings Graph Connectivity USB Host / External Printer / Keyboard Support Power Supply External 18 V DC SMPS Adapter Dimensions Approx. 172 × 445 × 312 mm Weight Approx. 5 kg
