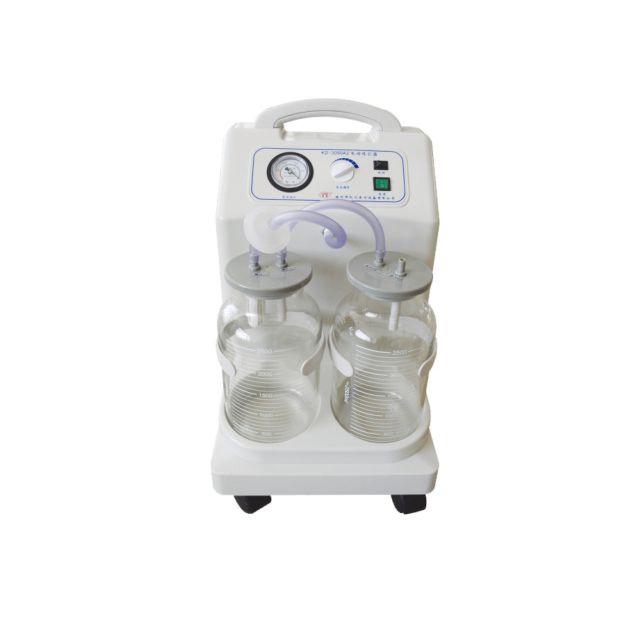

Electric suction machine SM-23D

The Wincom SM-23D Electric Suction Machine is a high-capacity medical suction apparatus designed for removing blood, mucus, secretions and other compatible fluids during clinical and surgical procedures. The SM-23D uses an oil-free piston pump, eliminating the need for routine oil maintenance and helping prevent contamination from oil mist. It provides a maximum negative pressure of ≥0.09 MPa and a pumping rate of ≥20 L/min, making it suitable for hospitals, operating theatres, clinics and other healthcare environments requiring dependable suction. A major advantage is its dual 2,500 mL collection bottles, providing a combined collection capacity of approximately 5,000 mL (5 L). Key Features ≥0.09 MPa maximum negative pressure ≥20 L/min pumping rate Dual 2,500 mL collection bottles Total collection capacity: 5,000 mL Oil-free piston pump Adjustable negative-pressure control Vacuum/negative-pressure gauge Overflow protection mechanism Hand-switch and foot-switch operation Anti-backflow design Noise level: ≤65 dB(A) Power consumption: ≤180 VA Mobile design for convenient movement No routine pump-oil maintenance required Suitable for medical and surgical suction applications
