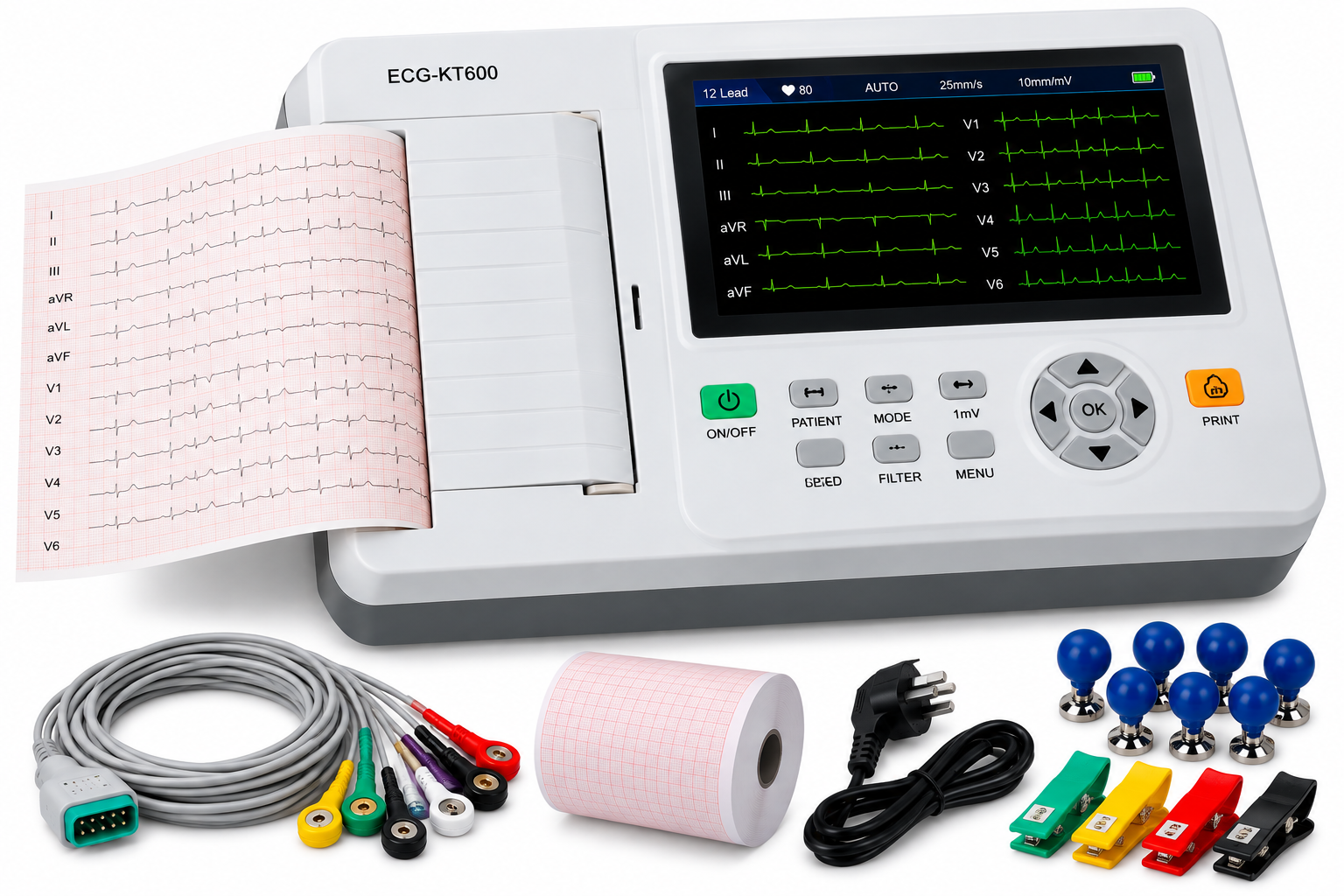

ECG-KT600 6-Channel 12-Lead Electrocardiograph

The ECG-KT600 6-Channel Electrocardiograph is a digital diagnostic ECG machine designed to record, display and print cardiac electrical activity from a standard 12-lead ECG system. It offers six-channel recording, a wide 0.05–150 Hz frequency response, high input impedance, low patient leakage current and multiple recording speeds for routine and advanced cardiac assessment. The unit uses 110 mm × 20 m high-speed thermal paper, allowing clear multi-channel ECG printouts for hospitals, cardiology departments, clinics and diagnostic centres. Key Features 6-channel ECG recording Standard 12-lead acquisition Integrated high-speed thermal printer 110 mm ECG recording paper Wide range of paper speeds Patient leakage current below 10 μA High input impedance of ≥50 MΩ Frequency response of 0.05–150 Hz Automatic ECG recording Suitable for resting ECG examinations Clear multi-channel waveform output Compact diagnostic workstation design Suitable for hospitals, clinics and cardiology units Specification Details Product Type 6-Channel Electrocardiograph Model / Art. No. ECG-KT600 Leads Standard 12 Leads Channels 6 Patient Leakage Current <10 μA Input Impedance ≥50 MΩ Frequency Response 0.05–150 Hz (-3 dB) Recording Method Thermal Printing Paper Size 110 mm (W) × 20 m (L) Paper Type High-Speed Thermal Paper Auto Paper Speeds 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 mm/s Paper Speed Accuracy ±5% ECG Type Resting ECG Installation Benchtop / Portable
