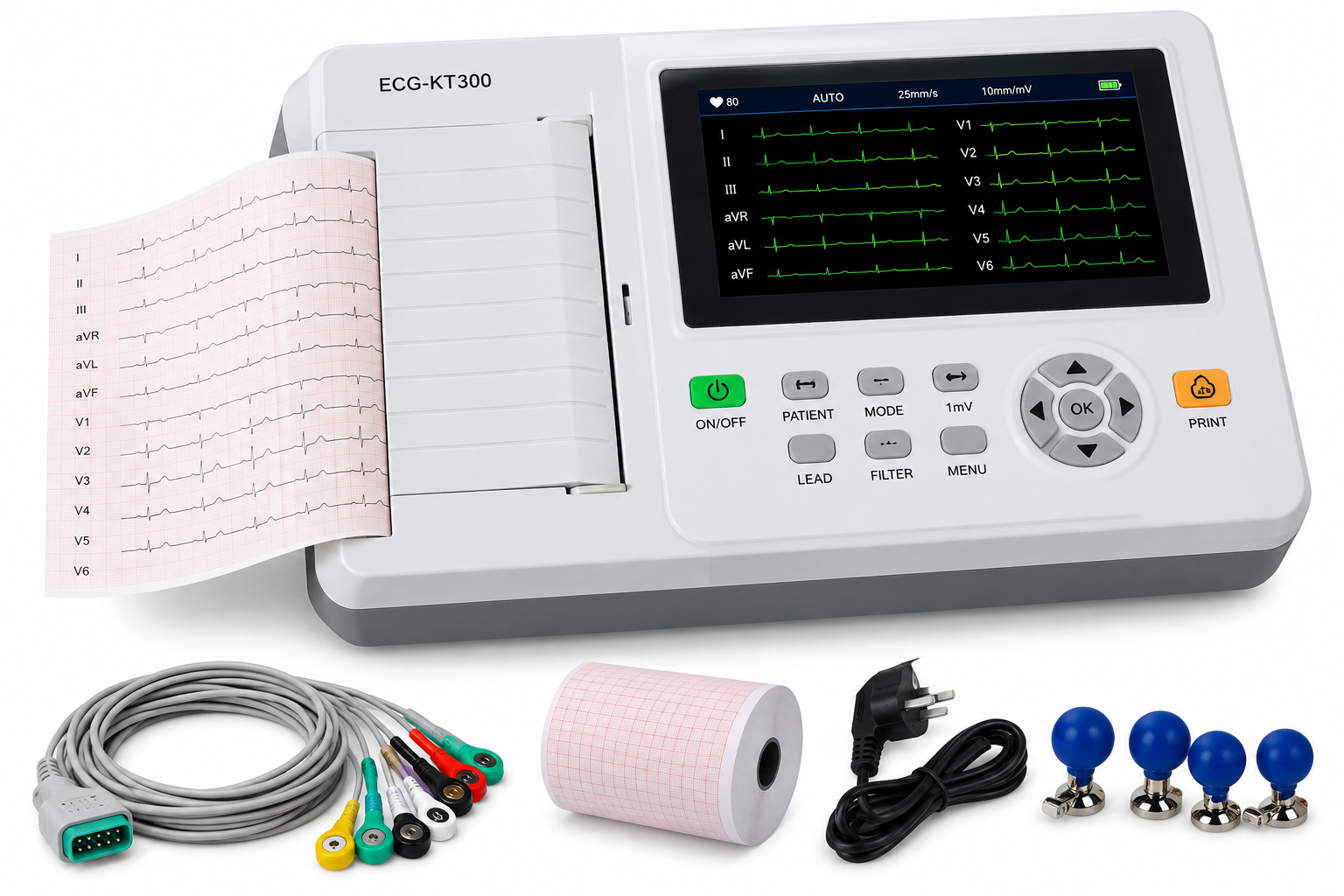

ECG-KT300 3-Channel 12-Lead Electrocardiograph

The ECG-KT300 3-Channel Electrocardiograph is a compact diagnostic ECG machine designed for recording and displaying the electrical activity of the heart using a standard 12-lead ECG system. It features high input impedance, low patient leakage current, a broad 0.05–150 Hz frequency response, and an integrated thermal printer using 80 mm × 20 m recording paper. The unit supports both 25 mm/s and 50 mm/s paper speeds, making it suitable for hospitals, clinics, cardiology departments and general diagnostic use. Key Features 3-channel ECG recording Standard 12-lead acquisition Integrated LCD display Built-in high-resolution thermal printer Automatic and manual recording modes 80 mm recording paper Paper speeds of 25 mm/s and 50 mm/s High input impedance of ≥50 MΩ Patient leakage current below 10 μA Frequency response of 0.05–150 Hz Compact and portable design Suitable for routine cardiac examinations Specification Details Product Type 3-Channel Electrocardiograph Model / Art. No. ECG-KT300 Leads Standard 12 Leads Channels 3 Patient Leakage Current <10 μA Input Impedance ≥50 MΩ Frequency Response 0.05–150 Hz (-3 dB) Recording Method Thermal Printing Recording Paper 80 mm (W) × 20 m (L) Paper Speed 25 mm/s, 50 mm/s ±5% Standard Sensitivity 10 mm/mV Sensitivity Options 2.5 / 5 / 10 / 20 / 40 mm/mV Display LCD Recording Modes Automatic / Rhythm / Manual Power AC mains with rechargeable battery on common configuration Installation Portable / Benchtop
