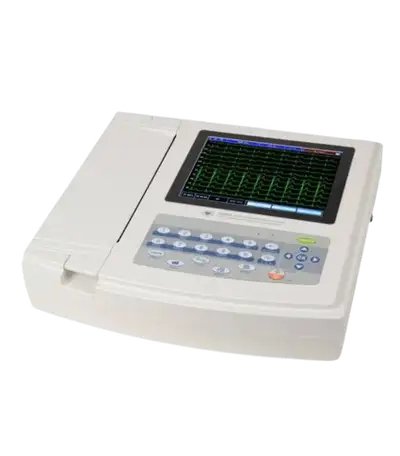

ECG-KT1200 12-Channel 12-Lead Electrocardiograph

The ECG-KT1200 12-Channel Electrocardiograph is a professional diagnostic ECG system designed for simultaneous acquisition, display and printing of standard 12-lead ECG signals. It is suitable for cardiology departments, hospitals, clinics, diagnostic centres and routine cardiac screening. The system uses a high-speed thermal printer with 210 mm × 20 m paper, offers automatic and manual recording modes, and supports AC mains power as well as rechargeable DC battery operation. The corresponding ECG1200G technical documentation confirms simultaneous 12-lead acquisition, thermal printing, AC/DC power, automatic measurement and multiple print formats. Key Features 12-channel ECG recording Standard 12-lead acquisition Simultaneous 12-lead ECG capture High-resolution digital display Built-in high-speed thermal printer 210 mm × 20 m thermal recording paper Auto, manual and rhythm recording modes Paper speeds of 25 mm/s and 50 mm/s in automatic mode High input impedance of ≥50 MΩ Patient leakage current below 10 μA Frequency response of 0.05–150 Hz Automatic ECG parameter measurement Lead-off and paper-out indication AC and rechargeable DC battery operation Internal ECG record storage on common configuration USB/data connectivity on compatible versions Specification Details Product Type 12-Channel Electrocardiograph Model / Art. No. ECG-KT1200 Leads Standard 12 Leads Channels 12 Patient Leakage Current <10 μA Input Impedance ≥50 MΩ Frequency Response 0.05–150 Hz (-3 dB) Recording Method High-Speed Thermal Printing Recording Paper 210 mm (W) × 20 m (L) Automatic Paper Speed 25 mm/s, 50 mm/s Paper Speed Error ±5% Manual Paper Speeds 5, 6.25, 10, 12.5, 25, 50 mm/s* Sensitivity Options 2.5, 5, 10, 20, 40 mm/mV* Recording Modes Auto / Manual / Rhythm Power Supply AC and DC Typical AC Input 100–240 V, 50/60 Hz* Typical Battery Rechargeable Lithium Battery* Typical Dimensions 340 × 320 × 85 mm* Installation Portable / Benchtop
