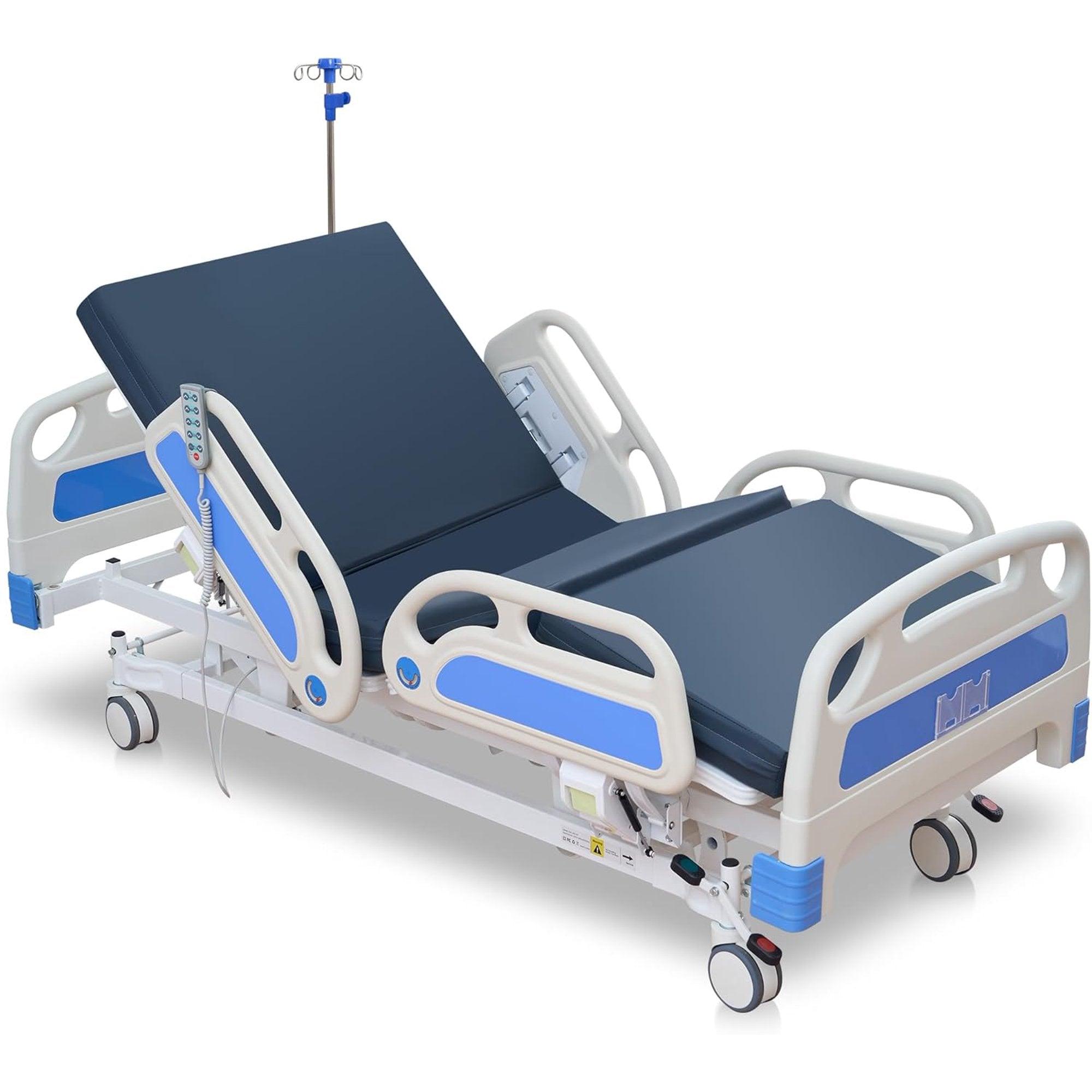

Double Cranks Electric Hospital Bed - 2-Function Electric Hospital Bed

The Double Cranks Electric Hospital Bed is a 2-function adjustable patient bed designed to improve patient positioning, comfort and caregiver convenience in hospitals, clinics, nursing facilities and home-care environments. Despite the common trade name “double crank,” an electric 2-function bed uses powered adjustment—typically through a handheld controller—to independently adjust the backrest and knee/leg-rest sections. Two-function electric hospital beds commonly provide backrest adjustment up to approximately 0–80° and knee-rest adjustment up to approximately 0–40°, although the exact range depends on the manufacturer and model. The adjustable back section helps position a patient for sitting, feeding, examination and general nursing care, while the adjustable leg section allows the knees and lower limbs to be elevated for positioning and comfort. Key Features Two electrically powered adjustment functions Handheld remote controller for effortless operation Low-noise electric motor system Adjustable backrest for sitting, eating, reading, and respiratory care Adjustable knee/leg section for improved circulation and patient comfort Heavy-duty powder-coated steel frame Detachable ABS head and foot boards Foldable ABS or aluminum alloy side rails Four 125 mm medical-grade swivel castors Central locking or individual wheel brake system Perforated steel mattress platform for ventilation IV pole sockets at all four corners Urine bag hooks Easy-to-clean, corrosion-resistant finish Optional rechargeable battery backup for continued operation during power outages. Technical Specifications Overall Length 2,100–2,200 mm Overall Width 900–1,000 mm Mattress Platform 1,950–2,000 × 900 mm Bed Height 480–550 mm (fixed) Backrest Adjustment 0°–75° Knee/Leg Rest Adjustment 0°–40° Safe Working Load 180–250 kg Castors 125 mm Medical-Grade Swivel Castors Side Rails Foldable ABS or Aluminum Alloy Power Supply AC 100–240 V, 50/60 Hz Motor System Two Low-Voltage Electric Motors Controller Wired Handset
