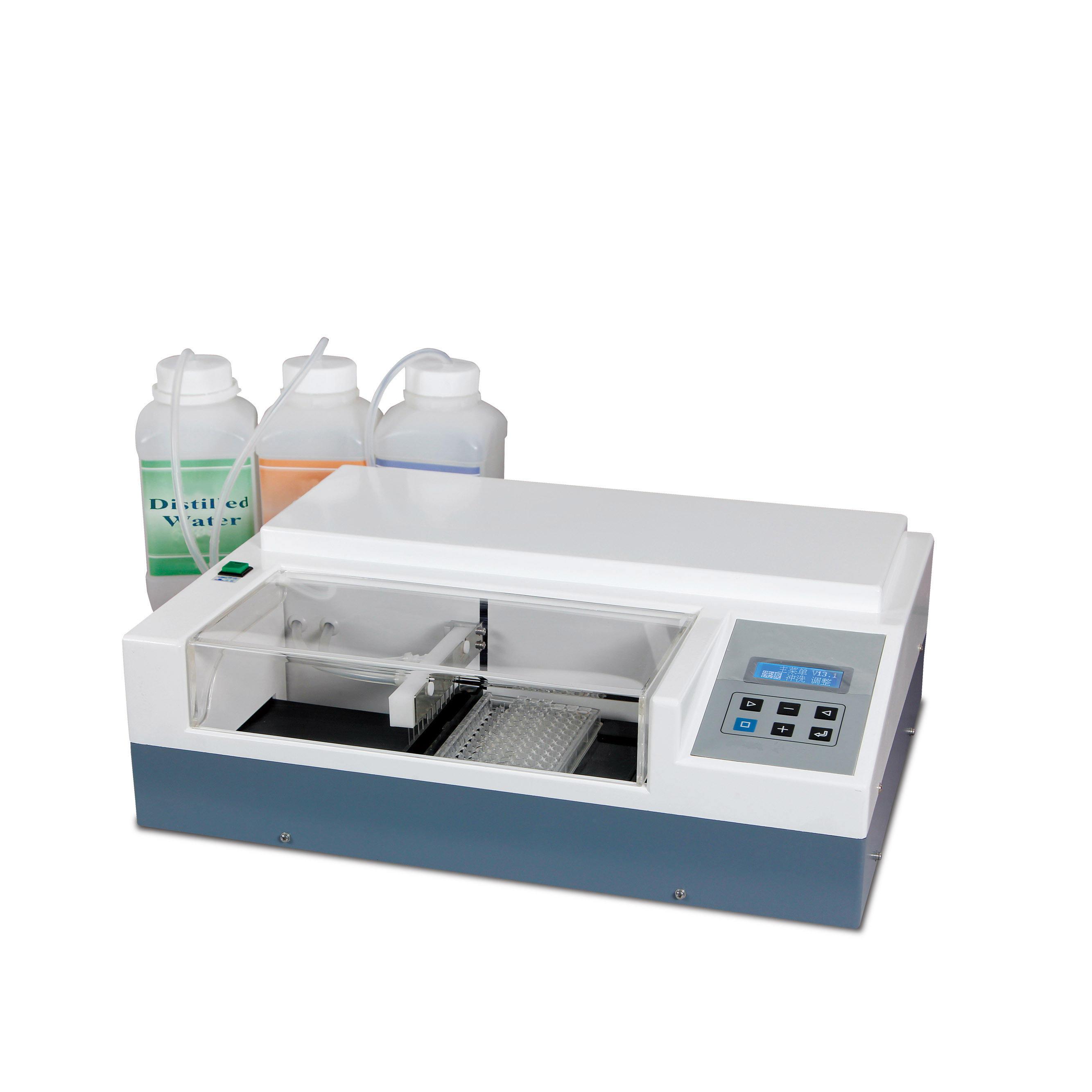

DNX-9620 Automatic Microplate Washer

The DNX-9620 Microplate Washer is an automated laboratory washer designed primarily for cleaning ELISA and other enzyme microplates after detection. It can also be used for reagent washing or dispensing in medical, biochemical, pharmaceutical and refined-chemistry laboratory applications. The system features an LCD interface, programmable wash cycles, automatic pipeline cleaning and stored programs for repeat workflows. It supports both 96-well and 48-well microplates and can be configured with 8- or 12-channel washing heads. Key Features Automatic microplate washing system LCD display with guided operation Supports 96-well and 48-well microplates 8- or 12-channel washing head Stores up to 100 programs Programmable washing cycles Adjustable cleaning rows Adjustable soak time Automatic pipeline rinsing Injected wash-liquid error below 5% Residual wash liquid below 2 µL/well Quiet operation suitable for hospital laboratories Easy and straightforward programming Suitable as an accessory to microplate/ELISA readers Specification Details Product Type Automatic Microplate Washer Model / Art. No. DNX-9620 Washing Channels 8 or 12 Channels Applicable Microplates 96-Well / 48-Well Program Storage Up to 100 Programs Wash Cycle Setting 1–12 presettable* Cleaning Rows 1–12 presettable Soak Time 1–86,400 sec* Residual Volume <2 µL/well Wash Liquid Injection Error <5% Display LCD Automatic Pipeline Cleaning Yes Dimensions 480 × 360 × 164 mm Net Weight 11 kg Typical Power Supply 220 V / 110 V Installation Benchtop
