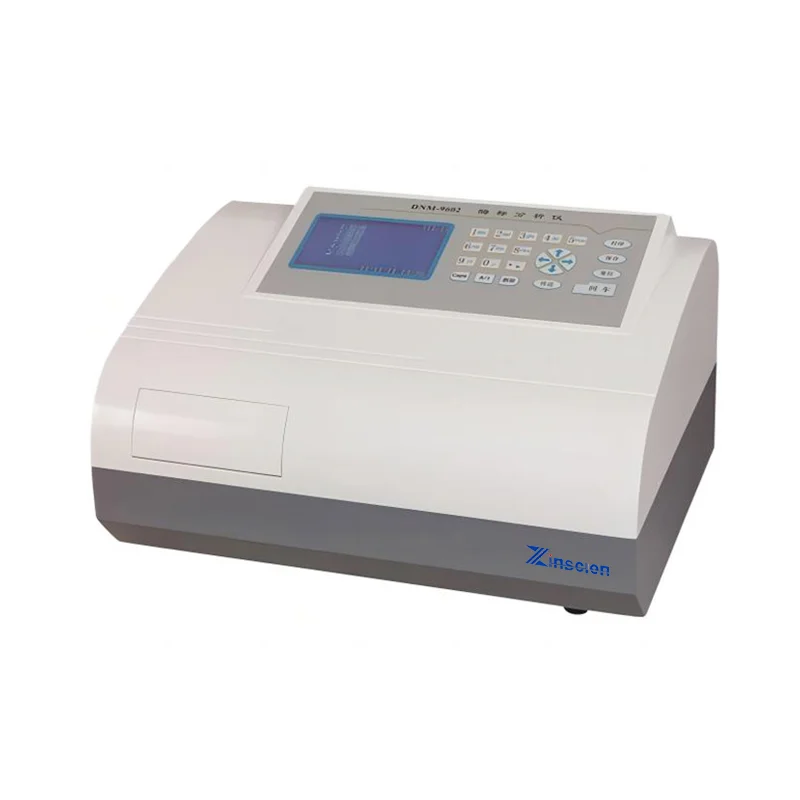

DNM-9602 8-Channel Microplate Reader with Thermal Printer

The DNM-9602 Microplate Reader is an 8-channel optical absorbance reader designed for ELISA and other microplate-based laboratory assays. It supports a broad 400–800 nm wavelength range, single- and dual-wavelength detection, automatic filter selection, and absorbance measurements from 0.001 to 4.000 Abs. The unit comes standard with 405 nm, 450 nm, 492 nm and 630 nm filters, while up to 10 filters can be installed. It also incorporates an internal thermal printer and can save results from up to 100 microplates, making it suitable for hospitals, clinical laboratories, immunology testing and research laboratories. Key Features 8-channel optical measurement system Working wavelength range of 400–800 nm Four standard filters: 405, 450, 492 and 630 nm Supports up to 10 filters Absorbance range of 0.001–4.000 Abs Single-wavelength and dual-wavelength measurement Single-wavelength reading in approximately 5 seconds Dual-wavelength reading in approximately 10 seconds Automatic filter selection Power-on self-diagnostic function LCD display for parameter setting and results Internal thermal printer Stores results for up to 100 plates High sensitivity and measurement accuracy RS232 communication capability on documented configurations Suitable for 96-well and 48-well microplates Specification Details Product Type Microplate Reader / ELISA Reader Model / Art. No. DNM-9602 Measurement System 8-Channel Optical System Working Wavelength Range 400–800 nm Standard Filters 405 / 450 / 492 / 630 nm Maximum Filter Capacity 10 Filters Measurement Range 0.001–4.000 Abs Single-Wavelength Reading Speed Approx. 5 sec Dual-Wavelength Reading Speed Approx. 10 sec Photometric Accuracy ±0.01 Abs at 0.001–1.500 Abs Repeatability <±0.5% at 0.001–1.500 Abs Stability <0.005 Abs Linearity <±1% at 0.001–1.500 Abs Detection Modes Single / Dual Wavelength Filter Selection Automatic Display LCD Printer Built-in Thermal Printer Stored Results Up to 100 Plates Compatible Plates 96-Well / 48-Well Computer Interface RS232 on documented configuration Software Compatibility Windows 7 / Windows XP Installation Benchtop
