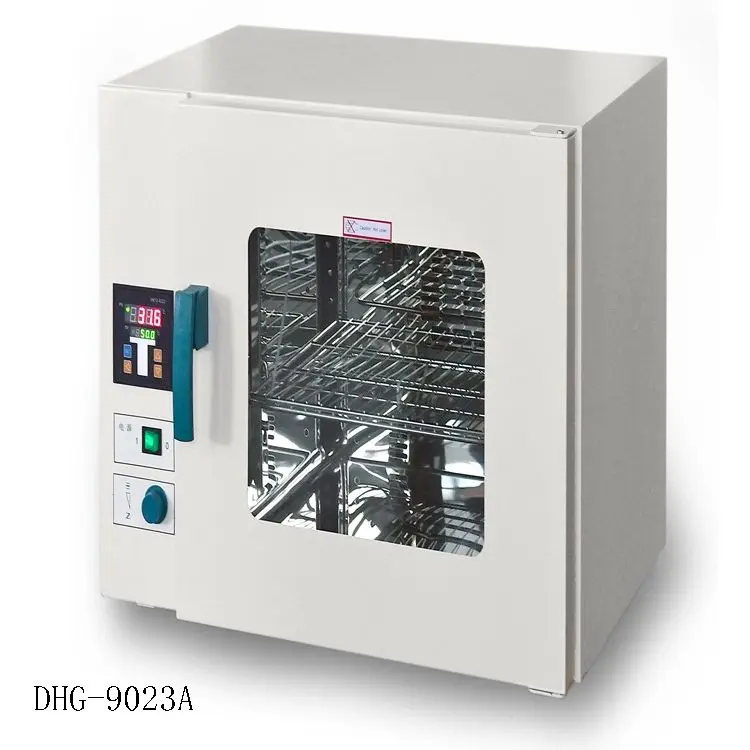

DHG-9023A 25L Digital Hot Air Oven

The DHG-9023A 25L Hot Air Oven is a compact laboratory drying and heating oven designed for controlled drying, sterilization, baking, heat treatment and sample conditioning. It uses forced hot-air circulation to promote uniform heat distribution throughout the chamber. The unit has a 25 L working chamber, digital temperature control, 0.1°C temperature resolution, approximately ±1°C temperature fluctuation, and timer functionality. Stainless-steel interiors and digital microprocessor controls are standard features on common DHG-9023A configurations. Key Features 25 L laboratory hot air oven Forced-air circulation Digital microprocessor temperature control Stainless-steel inner chamber Double-glass observation window Temperature range up to 300°C on applicable configuration 0.1°C temperature resolution Temperature fluctuation of approximately ±1°C Digital display of set and actual temperature Adjustable timer Over-temperature alarm PID temperature regulation Adjustable internal shelves Compact benchtop design Suitable for drying and thermal processing Specification Details Product Type Hot Air Oven / Forced-Air Drying Oven Model DHG-9023A Capacity 25 L Working Chamber Size 300 × 300 × 275 mm Working Chamber Size Inches 11.81 × 11.81 × 10.83 in Temperature Range 50–300°C Temperature Resolution 0.1°C Temperature Fluctuation ±1°C Timer 0–999 min Voltage 110 V 60 Hz / 220 V 50 Hz Supplied Power 320 W* External Dimensions 570 × 530 × 460 mm External Dimensions Inches 22.44 × 20.87 × 18.11 in Packing Size 640 × 550 × 700 mm Packing Size Inches 25.2 × 21.7 × 27.6 in Gross Weight 38 kg / 84 lb Net Weight 31 kg / 69 lb Inner Chamber Stainless Steel Installation Benchtop
