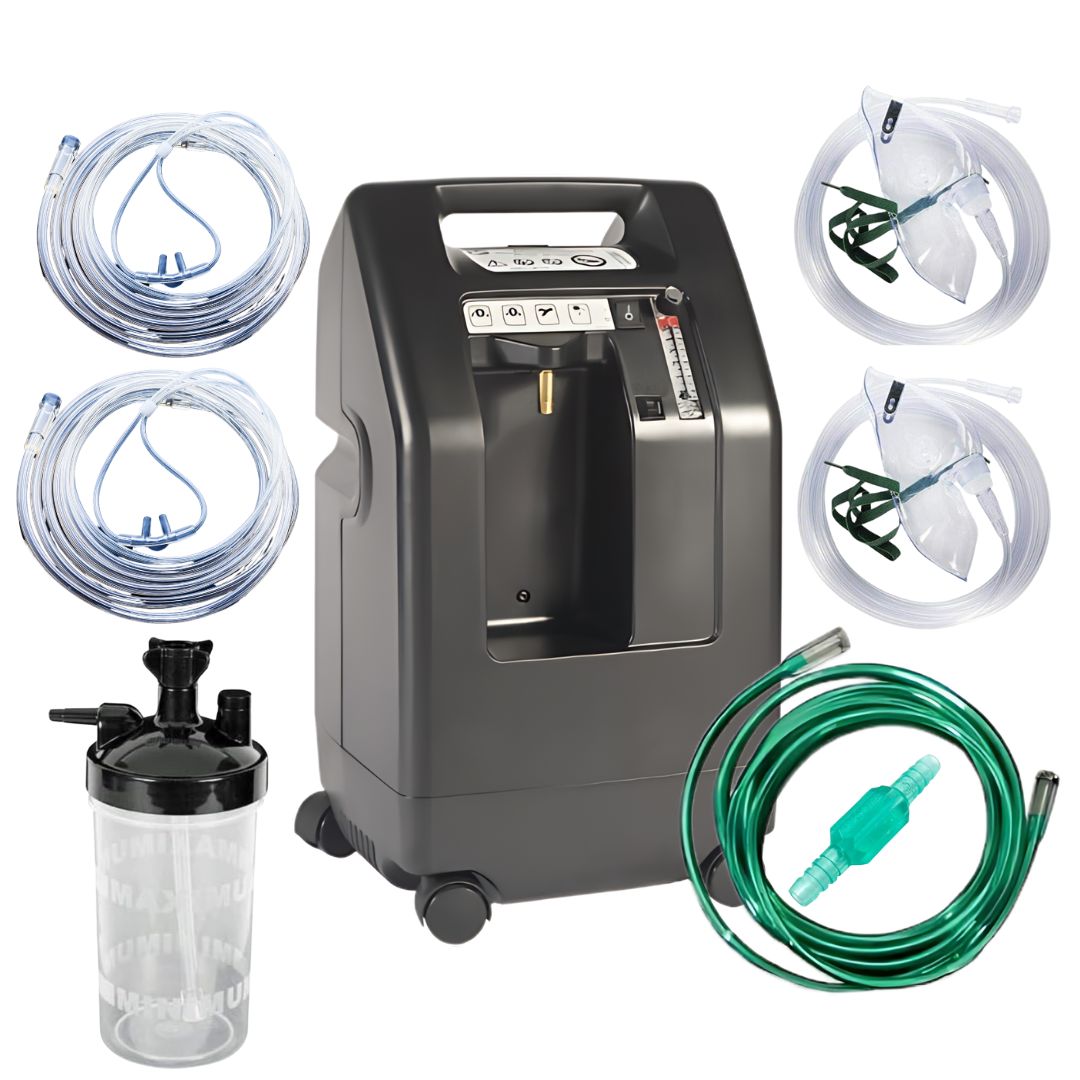

DeVilbiss 5L Oxygen Concentrator

The DeVilbiss 525KS 5L Oxygen Concentrator is a stationary continuous-flow oxygen concentrator designed to provide a reliable supply of concentrated oxygen for patients who require prescribed supplemental oxygen therapy. The Compact 525 delivers an adjustable oxygen flow of 0.5–5 litres per minute, with an oxygen concentration of 93% ±3% across the 1–5 L/min range. It incorporates DeVilbiss OSD® (Oxygen Sensing Device) technology to continuously monitor oxygen concentration and provide an indication if oxygen output falls below the appropriate level. Designed for straightforward operation, the concentrator incorporates an easy-to-read flowmeter, integrated carrying handle and castors for convenient movement. It is suitable for prescribed oxygen therapy in appropriate homecare and healthcare environments. Key Features Continuous oxygen flow: Adjustable from approximately 0.5–5 L/min. High oxygen concentration: The current 525 series specification states 87–96% oxygen at 1–5 L/min. DeVilbiss OSD® (Oxygen Sensing Device): Continuously monitors oxygen output and provides an indication if oxygen concentration falls outside the appropriate range. Turn-Down Technology: Reduces internal component wear and can reduce power consumption by 15% or more when oxygen demand is lower. Audible and visual alarms: Includes alarms for conditions such as high/low pressure, low flow, low oxygen and power failure. Integrated flowmeter: Allows easy adjustment and monitoring of prescribed oxygen flow. Humidifier-bottle recess: Provides a protected location for an optional humidifier bottle. Protected oxygen outlet: Helps reduce accidental damage to the cannula connection. Four castor wheels: Makes it easier to reposition the concentrator within a room. Integrated carrying/transport handle. Designed for reliable stationary oxygen therapy in clinical and home-care environments. Specifications Specification DeVilbiss 5L 525 Series Brand DeVilbiss Product Type Stationary Oxygen Concentrator Oxygen Flow 0.5–5 L/min Oxygen Concentration 87–96% at 1–5 L/min Oxygen Monitoring OSD® Oxygen Sensing Device Average Power Consumption Approx. 310 W on current 525DS specification Low-Flow Power Consumption Approx. 275 W at ≤1.2 L/min Dimensions Approx. 62.2 × 34.3 × 30.5 cm Weight Approx. 16.3 kg / 36 lb Mobility 4 castor wheels Flow Control Adjustable flowmeter Humidifier Connection Yes Alarms Audible & visual Application Supplemental oxygen therapy
