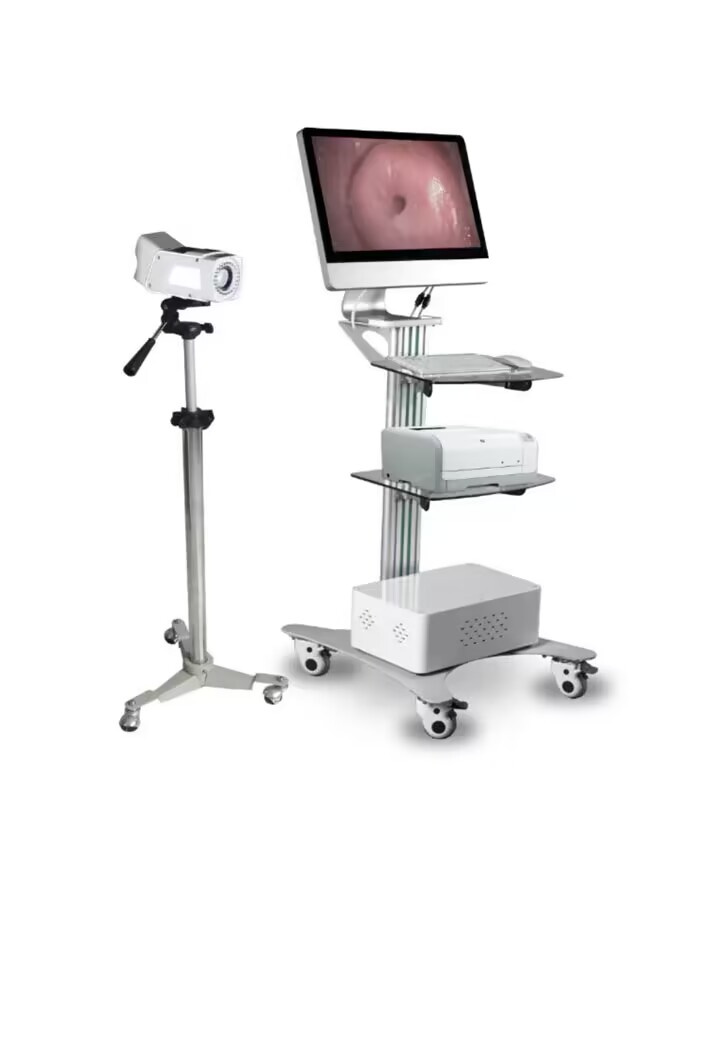

CPS-2100I Digital Electronic Colposcope

The CPS-2100I Digital Electronic Colposcope is a gynecological imaging system designed for magnified visualization, examination, capture and documentation of the cervix, vagina and vulva. It uses a color digital CCD image sensor with 830,000 pixels, together with a high-brightness cold-light source, automatic/manual focusing and powerful optical and digital zoom. The system supports color, green-filter and black-and-white viewing modes and allows image freezing using finger control, footswitch control or software. The system also provides real-time timing of acetic acid and iodine reaction tests, helping clinicians document colposcopic examination procedures. Key Features Color digital CCD image sensor 830,000-pixel imaging Color imaging mode Green-filter mode Black-and-white viewing mode 22× optical varifocal zoom 10× digital varifocal zoom Auto and manual focusing Focus range of 150–350 mm Minimum illumination of 0.05 Lux Signal-to-noise ratio greater than 50 dB Electronic shutter up to 1/10,000 sec Multi-point high-brightness white cold-light source Automatic backlight compensation Finger-controlled image freezing Footswitch-controlled image freezing Software-controlled image capture Real-time acetic-acid reaction timing Real-time iodine reaction timing Suitable for digital image documentation and reporting Specification Details Product Type Digital Electronic Colposcope Model / Art. No. CPS-2100I Image Sensor Color Digital CCD Pixel Resolution 830,000 Pixels Imaging Mode Color Additional Modes Green / Black & White Image Freeze Control Finger / Footswitch / Software Minimum Illumination 0.05 Lux Signal-to-Noise Ratio >50 dB Electronic Shutter 1–1/10,000 sec Light Source Multi-Point High-Brightness White Cold Light Backlight Compensation Automatic Focus Area 150–350 mm Focusing Automatic / Manual Optical Zoom 22× Digital Zoom 10× Dynamic Timing Control Acetic Acid and Iodine Reaction Tests Typical Installation Trolley / Workstation
