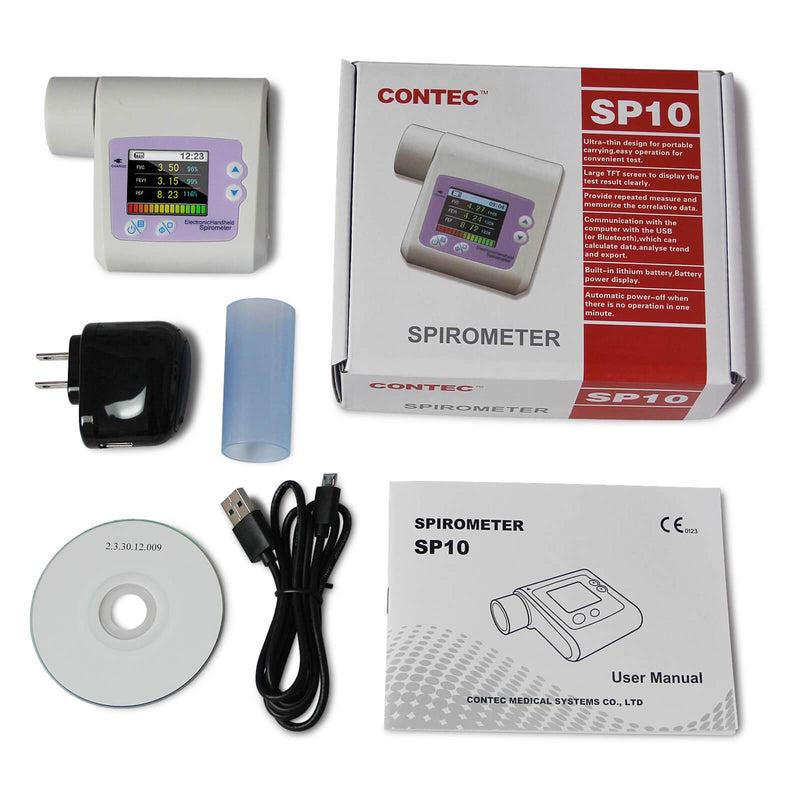

Contec SP10 Handheld Digital Spirometer for Pulmonary Function Testing

The Contec SP10 Handheld Digital Spirometer is a portable respiratory diagnostic device designed for measuring lung function, including forced vital capacity, forced expiratory volume and peak expiratory flow. Featuring a colour LCD display, rechargeable battery and USB connectivity, it is suitable for routine pulmonary function assessment in hospitals, clinics and respiratory care centres. Key Features & Technical Specifications - Brand: Contec - Model: SP10 - Equipment Type: Handheld Digital Spirometer - Measurement Technology: Infrared sensing - Measured Parameters: FVC, FEV1, FEV1/FVC, PEF, FEF25, FEF75 and FEF25–75 - Volume Measurement Range: 0–10 L - Volume Accuracy: ±3% or ±0.05 L, whichever is greater - Flow Measurement Range: 1–16 L/s - Flow Accuracy: ±10% or ±0.3 L/s, whichever is greater - Display: 1.8-inch colour LCD - Display Resolution: 160 × 128 pixels - Power Supply: 3.7 V rechargeable lithium battery - Working Current: Approximately 60 mA - Data Connectivity: USB connection with compatible PC software - Data Management: Storage, review, deletion and transfer of patient test results - Graphical Display: Flow-volume curves, volume-time curves and trend charts - Calibration: Calibration/scaling function - Automatic Shutdown: After approximately one minute of inactivity - Dimensions: 97 × 89 × 36 mm - Weight: Approximately 150 g - Safety Classification: Internally powered equipment with Type BF applied part - Standard Accessories: Mouthpiece, USB cable, power adapter and user manual - Optional Accessory: Nose clip - Applications: Pulmonary function assessment and routine respiratory examinations - Suitable For: Hospitals, respiratory clinics, medical centres and diagnostic laboratories
