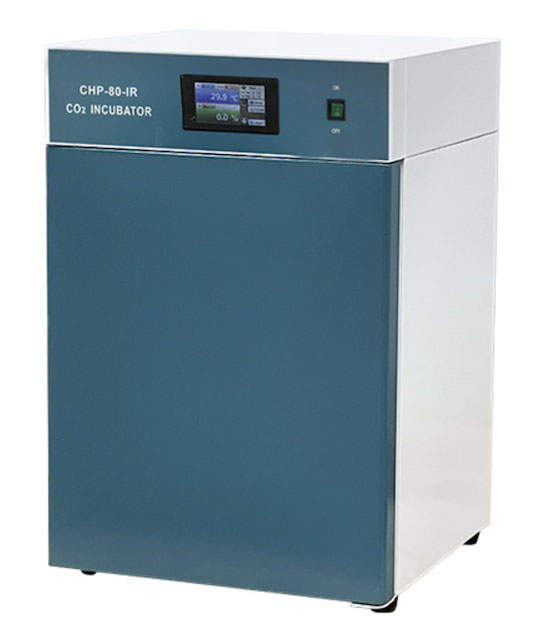

CHP-80 80L Intelligent CO2 Laboratory Incubator

The CHP-80 CO₂ Incubator is an intelligent laboratory incubator designed to maintain precisely controlled temperature and carbon dioxide conditions for cell culture, tissue culture, microbiology, biotechnology, pharmaceutical research and other laboratory applications requiring a stable CO₂-enriched environment. The unit provides a 0–20% CO₂ control range, temperature control from room temperature +5°C to 60°C, 0.1°C temperature resolution, and temperature control accuracy of approximately ±0.3°C. Its natural-evaporation humidification system helps maintain a humid internal environment suitable for sensitive cultures. Key Features Intelligent microprocessor control 80 L chamber capacity Temperature range of RT +5°C to 60°C Temperature control accuracy of ±0.3°C Temperature resolution of 0.1°C CO₂ concentration range of 0–20% CO₂ control accuracy of approximately 0.1% CO₂ uniformity of approximately ±0.1% at 5% concentration Rapid CO₂ concentration recovery Natural evaporation humidification Stainless-steel internal chamber Adjustable shelves Suitable for cell and tissue culture Controlled environment for biomedical research Audible/visual CO₂ alarm functionality on applicable configurations Operating environment from 5°C to 35°C Specification Details Product Type CO₂ Laboratory Incubator Model CHP-80 Series Art. No. IN-CO80 Capacity 80 L Control Mode Intelligent Control Temperature Range RT +5°C to 60°C Temperature Control Accuracy ±0.3°C Temperature Resolution 0.1°C CO₂ Range 0–20% CO₂ Control Accuracy 0.1% CO₂ Homogeneity At 5% concentration: ±0.1% CO₂ Alarm ±0.1%* CO₂ Recovery Time ≤ Concentration Value × 1.2 min Humidification Mode Natural Evaporation Operating Environment +5°C to 35°C Working Chamber Size 500 × 400 × 400 mm Standard Shelves 2 Typical Power Supply 220 V 50 Hz Typical Power Approx. 680–700 W depending on configuration Typical External Dimensions Approx. 580 × 570 × 850 mm Installation Floor-standing / Laboratory
