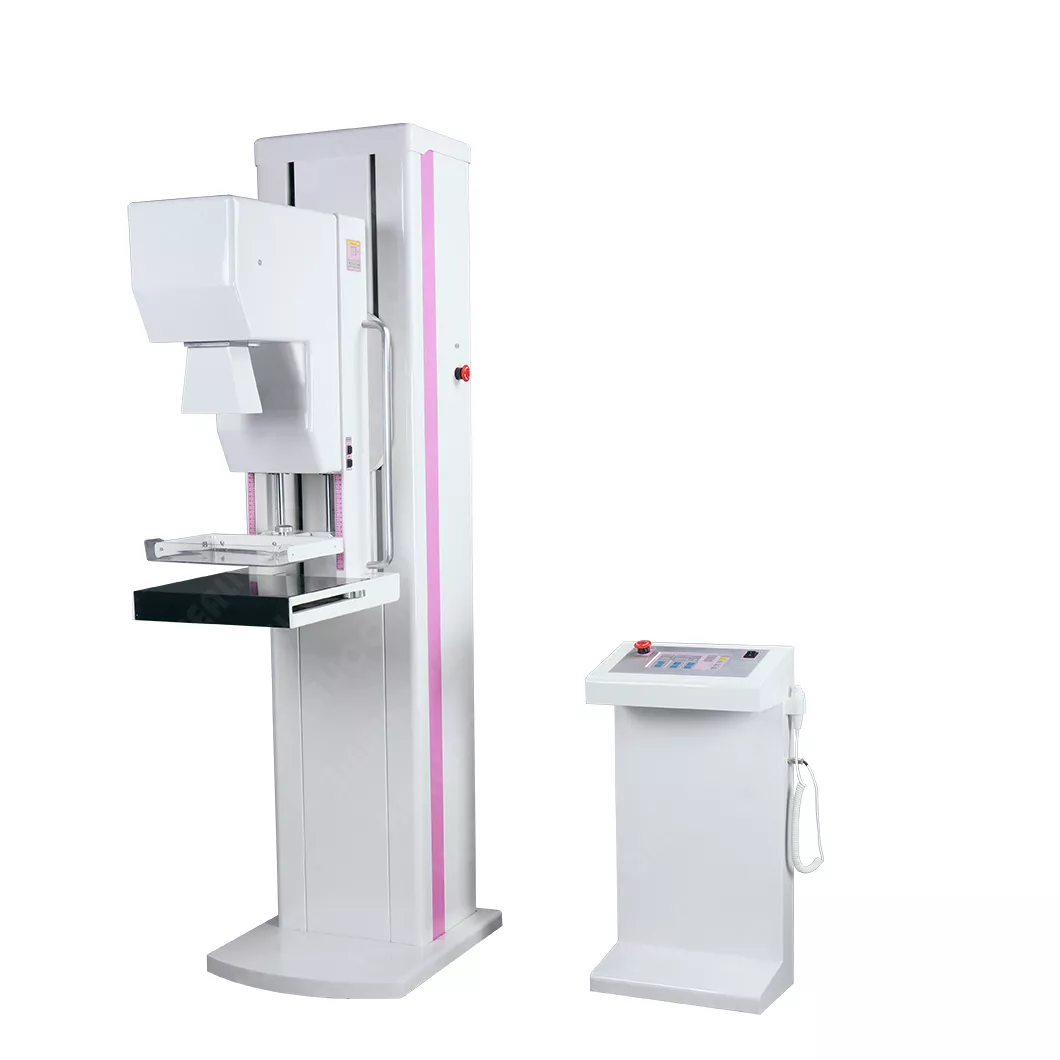

BTX9S00B High Frequency Analogue Mammography System 6kW

The BTX9S00B High Frequency Analogue Mammography System is designed for dedicated breast imaging and mammographic examinations in hospitals, diagnostic centres and breast clinics. The system provides 6kW power output, operates at a high frequency of approximately 80kHz, and uses a dual-focus X-ray tube with 0.2mm and 0.4mm focal spots. A comparable manufacturer specification for this system class confirms the same 6kW output, 80kHz frequency and 0.2/0.4 dual-focus configuration. The unit is configured as an analogue mammography system and is suitable for conventional mammography workflows using compatible film or analogue image-receptor systems. Key Features High-frequency analogue mammography system 6kW power output Approximately 80kHz operating frequency Dual-focus X-ray tube Small focal spot: 0.2mm Large focal spot: 0.4mm Two adaptable imaging sizes Dedicated breast imaging configuration Suitable for hospital and diagnostic centre mammography Designed for routine breast screening and diagnostic examinations Specification Details Model BTX9S00B Product Type High Frequency Analogue Mammography System Power Output 6kW Frequency 80kHz Focal Spot Dual Focus Small Focus 0.2mm Large Focus 0.4mm Image Size Two Sizes Adaptable X-Ray Tube China-Made Mammography Tube Imaging Technology Analogue Primary Application Mammography / Breast Imaging
