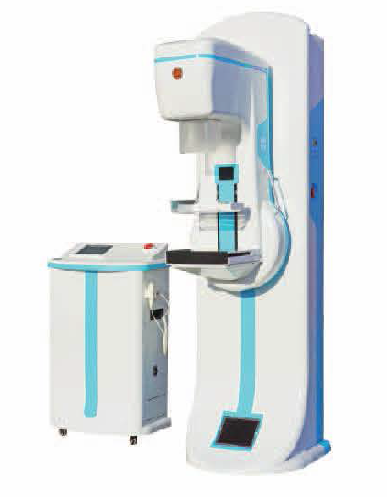

BTX9800D High Frequency Analogue Mammography System 6kW

The BTX9800D High Frequency Analogue Mammography System is designed for dedicated breast imaging and mammographic examinations in hospitals, diagnostic centres and specialist breast clinics. The system uses a high-frequency 80kHz generator with approximately 6kW output power and a dual-focus mammography X-ray tube. For the China-tube configuration, published specifications list 0.2mm / 0.4mm focal spots, matching the data you supplied. The system also incorporates an isocentric rotating C-arm with automatic return-to-centre function, supporting efficient patient positioning and imaging workflow. It supports two adaptable cassette sizes, typically 18 × 24cm and 24 × 30cm, allowing the unit to accommodate different breast sizes and examination requirements. Key Features High-frequency mammography X-ray system Analogue mammography configuration 6kW power output 80kHz high-frequency inverter Dual-focus mammography X-ray tube 0.2mm small focal spot 0.4mm large focal spot China-made mammography tube Isocentric rotating C-arm Automatic return-to-centre function Two adaptable cassette sizes Dedicated breast imaging design Suitable for breast screening and diagnostic mammography Specification Details Model BTX9800D Product Type High Frequency Analogue Mammography System Power Output 6kW Generator Type High Frequency Inverter Frequency 80kHz Focal Spot Configuration Dual Focus Small Focus 0.2mm Large Focus 0.4mm X-Ray Tube China Mammography Tube C-Arm Function Isocentric Rotation Automatic Return to Centre Yes Cassette Sizes 18 × 24cm / 24 × 30cm Imaging Technology Analogue Primary Application Mammography / Breast Imaging
