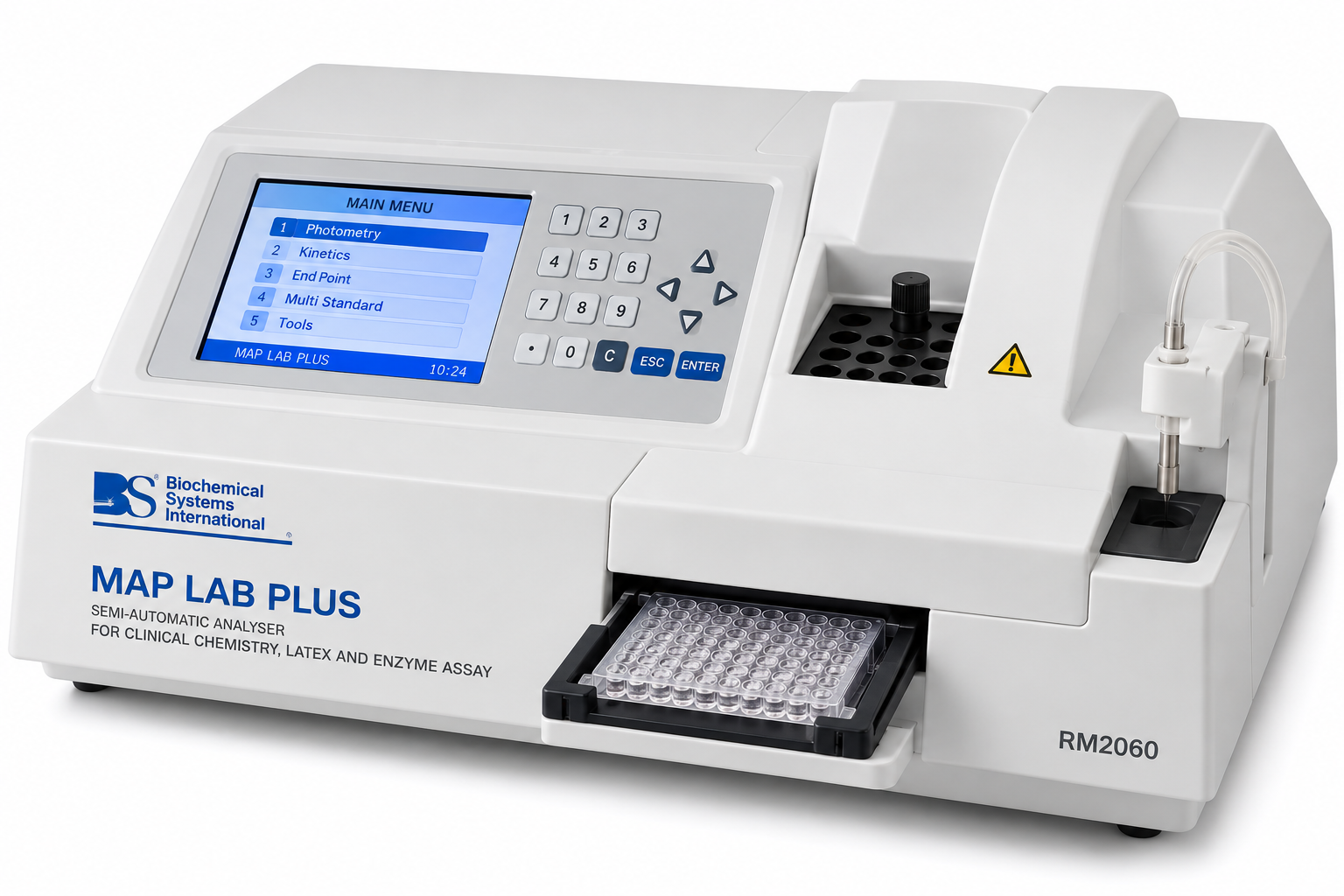

Biochemical Systems MAP LAB PLUS Semi-Automatic Clinical Chemistry and ELISA Analyzer

The MAP LAB PLUS RM2060 is a multipurpose semi-automatic laboratory analyzer designed for clinical chemistry, latex agglutination, enzyme immunoassay and ELISA applications. It combines two separate optical systems so laboratories can perform chemistry tests using standard cuvettes or the flow cell, while microwell strips can be used for immunochemical assays. The analyzer is microprocessor-controlled, can store up to 90 programmed tests, provides automatic interferential-filter selection, supports bichromatic reading, and maintains a fixed incubation temperature of 37°C. Key Features Multipurpose semi-automatic analyzer Clinical chemistry capability Latex agglutination testing EIA and ELISA testing Standard cuvette measurement Flow-cell measurement Microwell strip reading Two independent optical measuring systems Stores up to 90 tests Automatic microwell strip advancement and reading 10 interference filters Automatic filter selection Monochromatic and bichromatic reading Fixed 37°C incubation PC data-management software Programmable test parameters Quality-control functions Microprocessor-controlled operation Specification Details Product Type Semi-Automatic Clinical Chemistry / Immunoassay Analyzer Product Name MAP LAB PLUS Code RM2060 / RM2060_18 Manufacturer Biochemical Systems International Country Italy Test Storage Up to 90 Tests Clinical Chemistry Reading Cuvette / Flow Cell Immunoassay Reading Microwell Strip Operating Modes Absorbance, Endpoint, Fixed-Time, Kinetic, Multistandard, Qualitative EIA Modes EIA and EIA Concentration Flow Cell Volume Approx. 18 µL Flow Cell Path Length 10 mm Spectral Range Approx. 320–690 nm Typical Filter Range 340–630 nm Number of Filters 10 Reading Modes Monochromatic / Bichromatic Measuring Range -0.200 to 3.000 O.D. Incubator 10 Positions Incubation Temperature 37°C ±0.2°C Sample / Reagent Intake Peristaltic Pump Macro-Cuvette Minimum Volume Approx. 1 mL Micro-Cuvette Minimum Volume Approx. 0.3 mL Weight Approx. 14.5 kg
