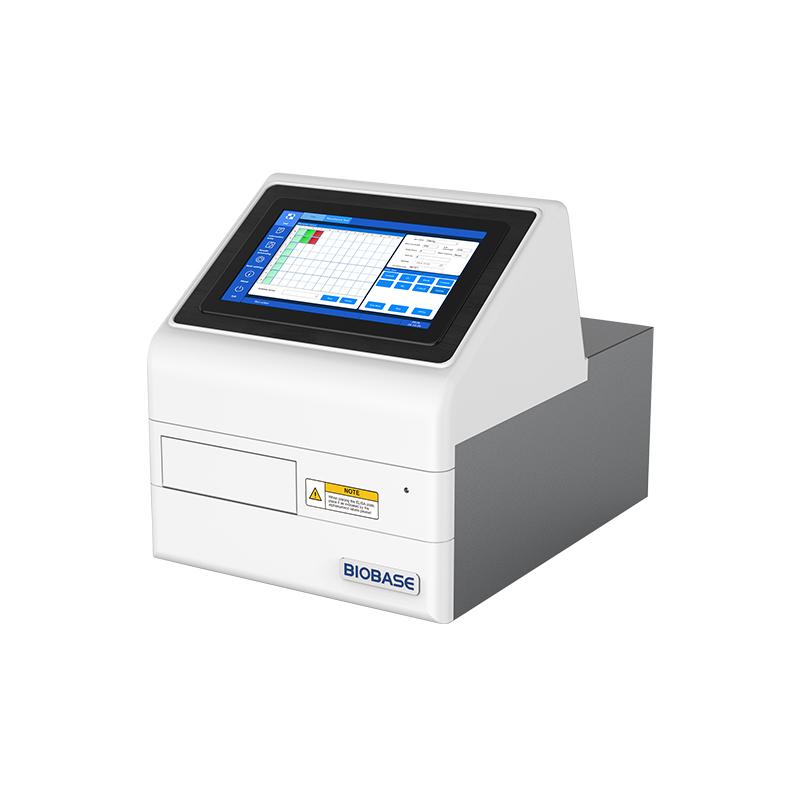

BIOBASE BK-EL10A ELISA Microplate Reader – 96-Well Touchscreen Analyzer

The BIOBASE BK-EL10A ELISA Microplate Reader is a laboratory analytical instrument designed for reading optical absorbance from 96-well microplates used in ELISA and other compatible microplate-based assays. The BK-EL10A features 8 vertical optical measurement channels, a wavelength range of 400–750 nm, and four standard filters at 405, 450, 492 and 630 nm. It supports both single- and dual-wavelength detection, allowing laboratories to perform qualitative and quantitative ELISA analysis. A large 10.1-inch capacitive touchscreen provides standalone operation, while USB, network and RS-232 interfaces facilitate data transfer and connection to external devices. Key Features Designed for standard 96-well microplates 8 vertical optical measurement channels 10.1-inch colour capacitive touchscreen Wavelength range: 400–750 nm Standard filters: 405, 450, 492 and 630 nm Optional configuration supports up to 10 wavelengths Single-wavelength and dual-wavelength detection Linear range: 0.000–3.000 Abs Reading range: 0.000–4.000 Abs High resolution of 0.0001 Abs Repeatability: CV ≤0.2% Five microplate vibration/shaking modes Adjustable vibration time from 0–255 seconds Qualitative and quantitative analysis functions Supports multiple quantitative curve-fitting algorithms External keyboard and mouse support Optional external A4 printer support USB, RJ45 network and RS-232 connectivity
