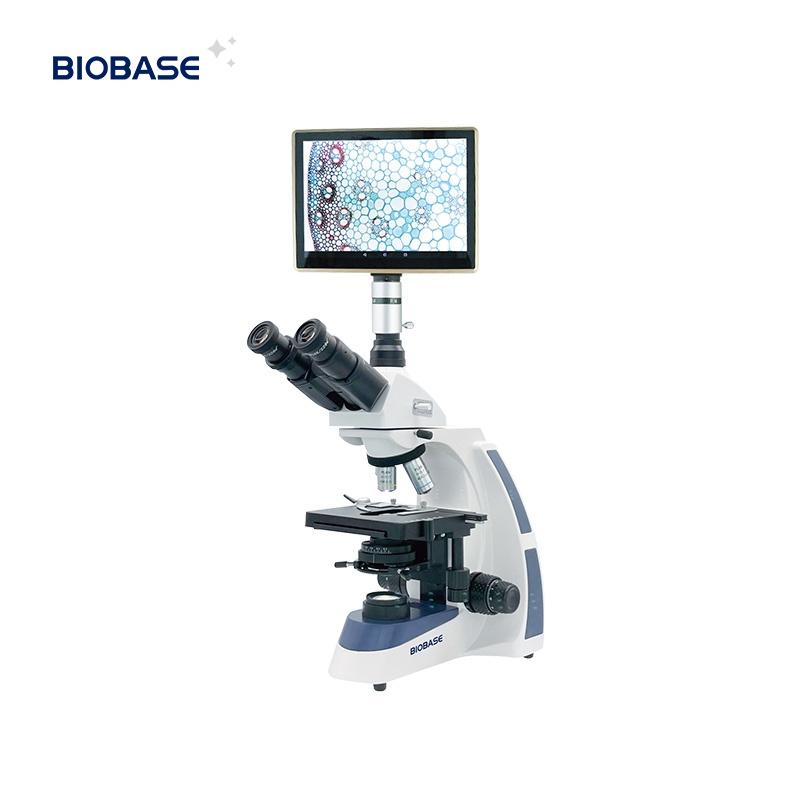

BIOBASE BBM-17AP Digital Biological Microscope with Android Display

The BIOBASE BBM-17AP Digital Biological Microscope is a laboratory microscope combining an infinity optical system with digital imaging, making it suitable for biological observation, laboratory research, teaching and other microscopy applications. The BBM-17AP features a compensation-free trinocular viewing head, inclined at 30° and rotatable through 360°, with an interpupillary adjustment range of 48–75 mm. Its infinity achromatic optical system uses 4X, 10X, 40X and 100X oil-immersion objectives, providing a broad magnification range for observing biological specimens. A major advantage of the BBM-17AP is its integrated digital Android display system, which enables convenient viewing of microscope images on a screen instead of relying exclusively on the eyepieces. BIOBASE's current official product page specifies a 10.5-inch Android system PAD with MCL-Z adapter for the BBM-17AP. The microscope also incorporates coaxial coarse and fine focusing, a mechanical stage, Abbe condenser and adjustable LED illumination, providing the precision and illumination control needed for routine laboratory microscopy. Key Features Digital biological microscope Model: BBM-17AP Infinity optical system Trinocular viewing head 30° inclined viewing head 360° rotatable head 48–75 mm interpupillary adjustment WF10X/22 mm eyepiece Optional P16X/15 mm eyepiece Infinity achromatic objectives 4X, 10X, 40X and 100X oil objectives Coaxial coarse and fine focusing Fine adjustment division of 0.002 mm Mechanical specimen stage Abbe NA 1.25 condenser Iris diaphragm and filters Adjustable LED illumination Integrated Android digital display system Suitable for laboratory and educational microscopy
