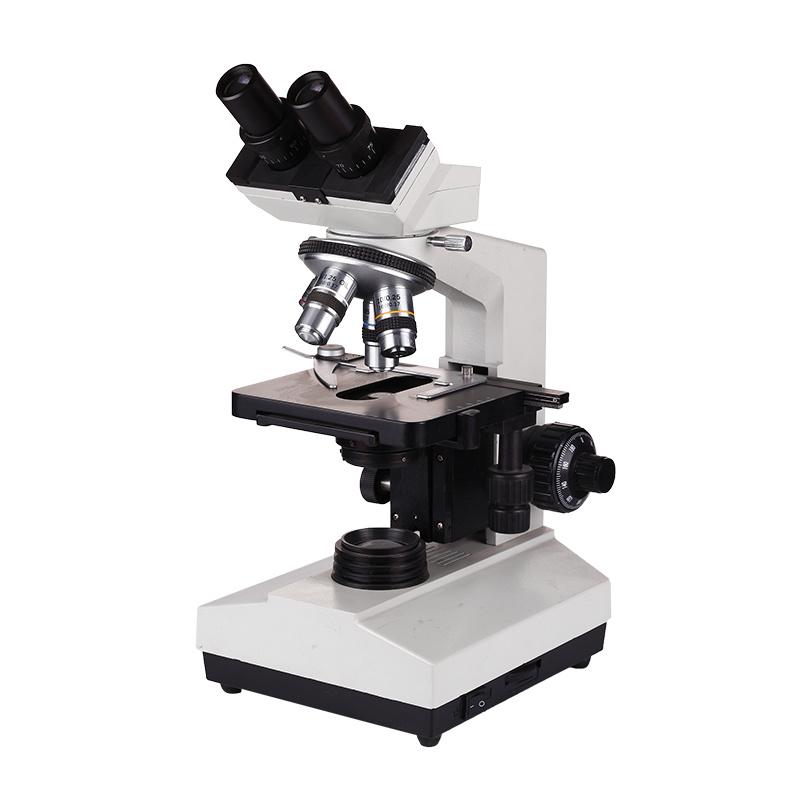

Binocular microscope halogen XSZ-107BN

The Wincom XSZ-107BN Binocular Biological Microscope is a laboratory microscope designed for routine microscopic examination in clinical laboratories, hospitals, educational institutions and research environments. The microscope features a 45° inclined binocular viewing head, WF10X wide-field eyepieces, four achromatic objectives (4X, 10X, 40X and 100X oil immersion), a double-layer mechanical stage and an Abbe NA 1.25 condenser. For the halogen configuration, the XSZ-107BN uses a 6V/20W halogen illumination system, with 220V or 110V input configurations listed. Key Features Binocular viewing head Head inclined at 45° Wide-field WF10X eyepieces WF16X eyepiece available as an option 4X, 10X, 40X(S), 100X(S, Oil) achromatic objectives Up to 1000X standard magnification with WF10X Double-layer mechanical stage Stage size: 140 × 140 mm Stage movement: 75 × 45 mm Coaxial coarse and fine focusing Focusing range: 30 mm Fine focusing interval: 0.002 mm Abbe condenser NA 1.25 Iris diaphragm and filter 6V/20W halogen illumination Compact benchtop laboratory design
