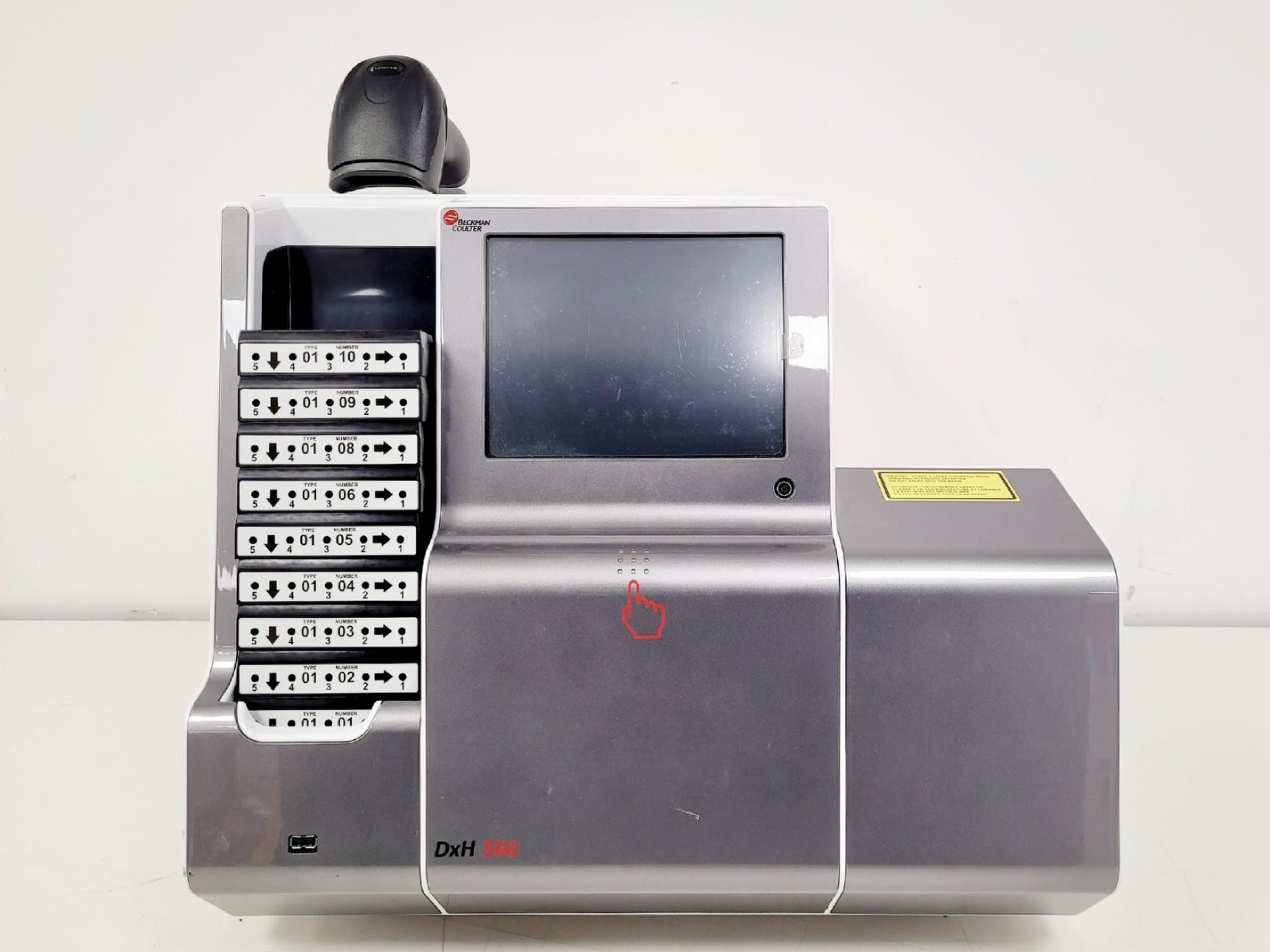

Beckman Coulter DxH 560 AL 5-Part Hematology Analyzer

The Beckman Coulter DxH 560 AL is a compact automated 5-part differential hematology analyzer with an integrated autoloader, designed to improve CBC and differential testing efficiency in small and medium-volume clinical laboratories. One of its major advantages over the DxH 520 is its 50-tube continuous-feed autoloader. Laboratory personnel can load samples and allow the analyzer to process them automatically, while additional tubes can be added during operation. This increases walkaway time and reduces repetitive manual sample handling. The DxH 560 AL requires only 17 µL of venous or micro-collected whole blood, making it particularly useful for difficult-to-draw patients, including pediatric, oncology and elderly patients. It processes approximately 55 closed-tube samples per hour or 60 open-tube samples per hour. It combines automated sample loading with 5-part differential analysis, onboard quality control, extensive patient-result storage, barcode capability and bidirectional LIS connectivity in a compact benchtop system. Key Features Automated 5-part WBC differential Complete blood count testing 50-tube continuous-feed autoloader Continuous on-the-fly sample loading Closed-tube automated aspiration Open-tube sampling mode 17 µL whole-blood sample requirement Up to 60 samples/hour Stores up to 30,000 patient results Integrated 8.4-inch high-resolution color touchscreen Handheld barcode reader Bidirectional LIS connectivity Ethernet and RS-232 communication Extended QC capabilities Autonomous daily startup and cleaning Uses only three reagents Compact benchtop design Designed to increase laboratory walkaway time Specification Details Manufacturer Beckman Coulter Model DxH 560 AL Part Number B40603 Analyzer Type Automated Hematology Analyzer Differential 5-Part Autoloader Yes Autoloader Capacity 50 Tubes Continuous Feed Sampling Modes Autoloader / Closed Tube / Open Tube Sample Type Venous or Micro-Collected Whole Blood Sample Volume 17 µL Closed-Tube Throughput 55 Samples/Hour Open-Tube Throughput 60 Samples/Hour Patient Data Storage 30,000 Results Display 8.4-inch High-Resolution Color Touchscreen Barcode Reader Handheld LIS Connectivity Bidirectional Communication Ethernet RJ45 / RS-232 USB 5 × USB 2.0 Power Supply 100–240 VAC 50–60 Hz Power Consumption <120 W Operating Temperature 18–32°C Maximum Operating Altitude 3,000 m Width 500 mm Height 440 mm Depth 460 mm
