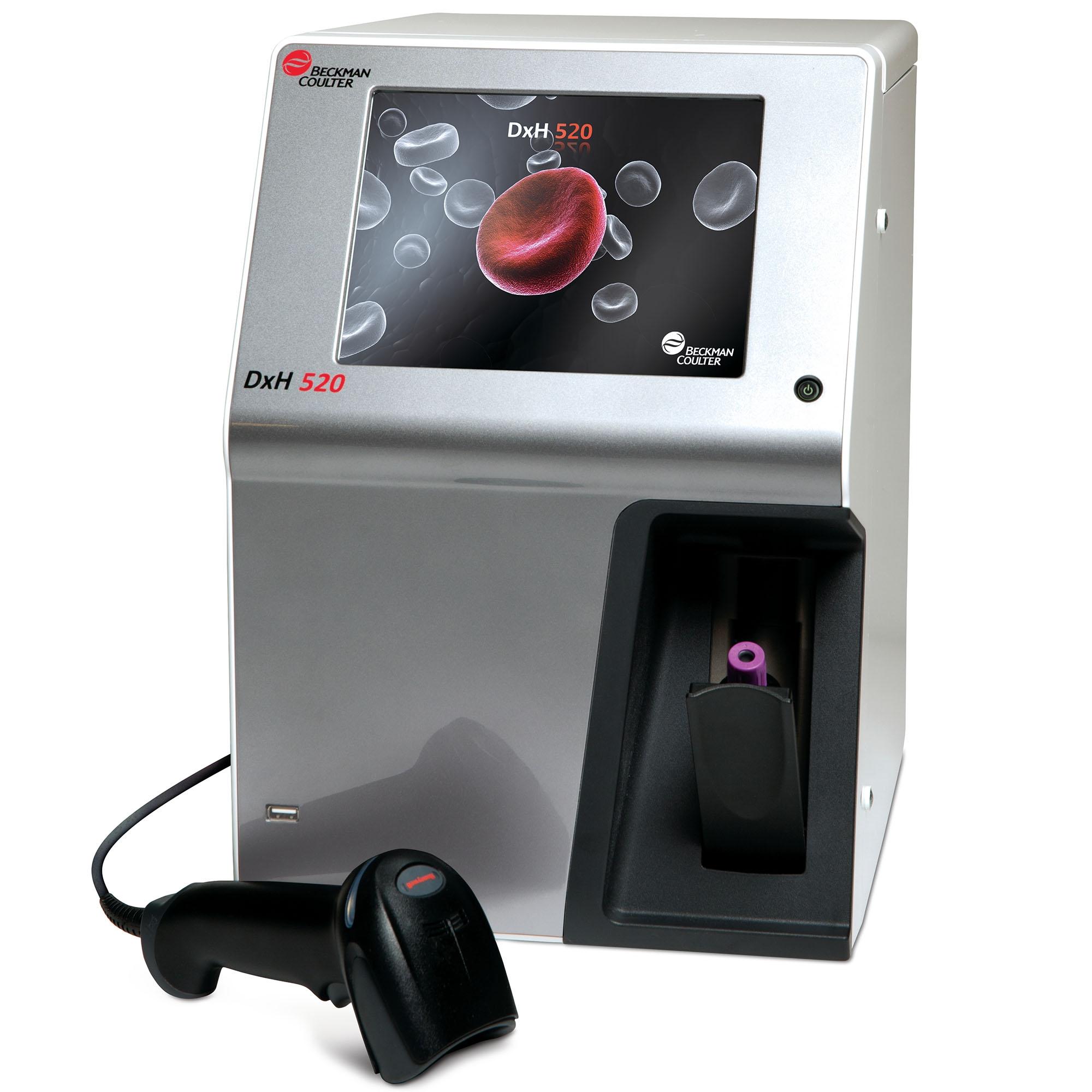

Beckman Coulter DxH 520 5-Part Hematology Analyzer

The Beckman Coulter DxH 520 is a compact automated 5-part differential hematology analyzer designed primarily for low-volume clinical laboratories, clinics and physician-office laboratories requiring high-quality CBC and white blood cell differential testing without the footprint of a larger hematology platform. The analyzer supports both open- and closed-tube sampling. It requires only 17 µL of whole blood for routine analysis and can operate with as little as a 375 µL tube fill volume, making it particularly useful for pediatric, neonatal and difficult-draw specimens. Throughput reaches 55 samples/hour in closed-tube mode and 60 samples/hour in open-tube mode. Closed-tube technology also reduces direct operator exposure to blood specimens, supporting safer routine laboratory workflows. The DxH 520 uses Beckman Coulter's cellular-analysis technologies, including the Coulter Principle and flow-cytometric optical measurements, to generate CBC and 5-part differential results. It uses only three reagents and incorporates automated cleaning and patient/QC data-management capabilities. Key Features Automated 5-part WBC differential Complete blood count (CBC) testing Open- and closed-tube sampling Up to 60 samples per hour Only 17 µL sample aspiration Suitable for low-volume specimens Appropriate for adult and pediatric populations including neonates Proprietary dynamic gating Closed-tube technology for enhanced operator safety Touchscreen user interface Handheld barcode reader Stores up to 30,000 patient results LIS connectivity via Ethernet and RS-232 Uses only three reagents Automated cleaning cycle Compact benchtop footprint Low power consumption of less than 120 W Specification Details Brand Beckman Coulter Model DxH 520 Product Type Automated Hematology Analyzer Differential 5-Part Operation Open & Closed Tube Closed-Tube Throughput 55 Samples/Hour Open-Tube Throughput 60 Samples/Hour Sample Aspiration 17 µL Pre-Diluted Sample 20 µL Minimum Tube Fill Volume 375 µL Patient Result Storage 30,000 Results User Interface Touchscreen Barcode Reader Handheld LIS RS-232 & Ethernet USB 5 × USB 2.0 Power 100–240 VAC 50/60 Hz Power Consumption <120 W Operating Temperature 18–32°C Dimensions W × H × D 270 × 406 × 430 mm Weight 11.4 kg
