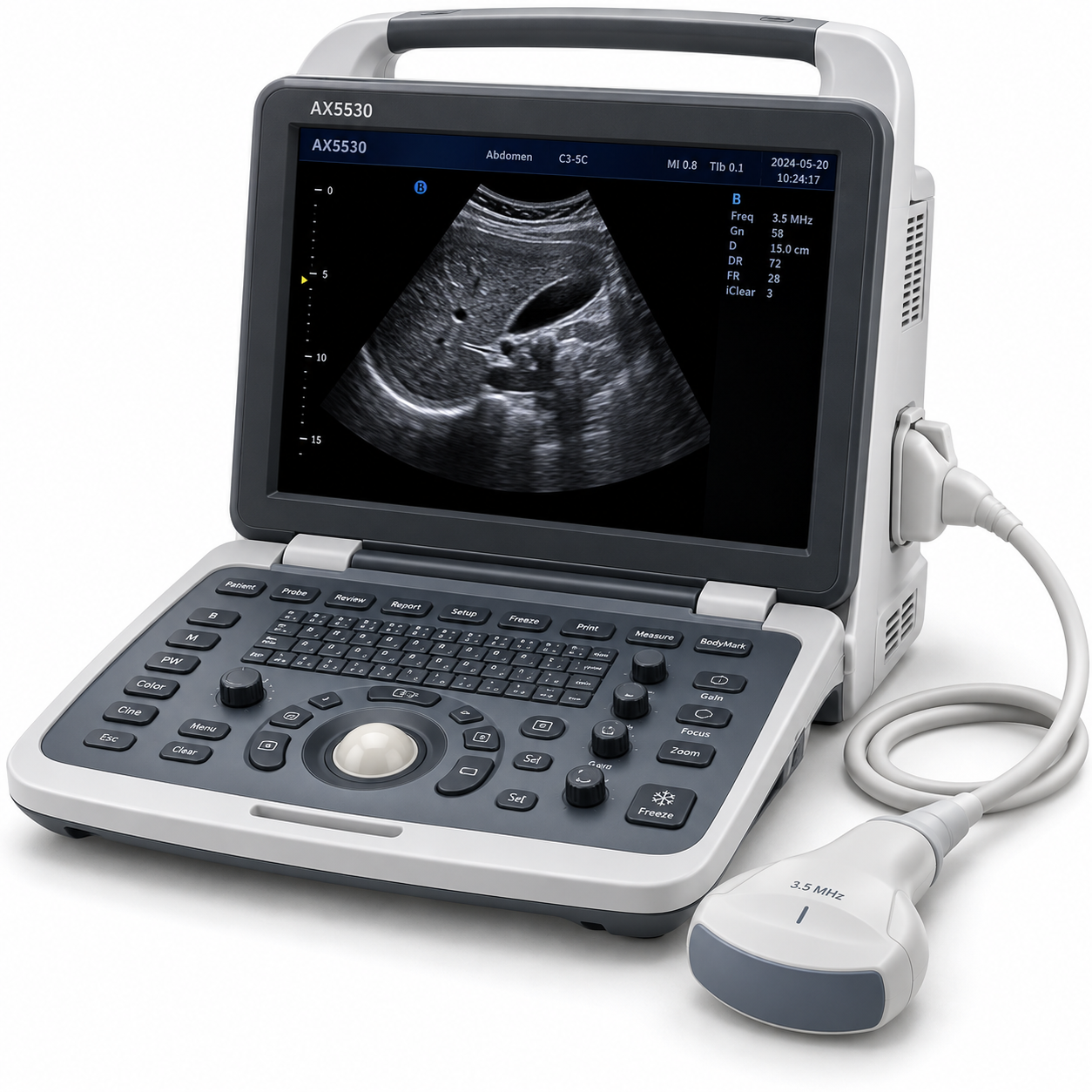

AX5530 Full Digital Ultrasound Scanner with 3.5MHz Convex Probe

The AX5530 Full Digital Ultrasound Scanner is a diagnostic imaging system designed for abdominal, obstetric, gynecological and general ultrasound examinations. It combines full-digital image processing with a large 12-inch color display, image storage, cine-loop review and automatic report generation. The standard package includes the main ultrasound unit and one 3.5 MHz convex probe, while optional probes can extend the system to transvaginal and superficial imaging applications. Similar full-digital 12-inch systems also support B, B/B, 4B, B+M and M imaging modes, 8-segment TGC and permanent image storage. Key Features Full digital ultrasonic diagnostic system Full digital image-processing technology 12-inch TFT color monitor Large-capacity cine loop Permanent image storage Intelligent trackball 8-stage TGC Dual USB ports Automatic probe recognition Two SVGA outputs Two PAL video outputs Automatic report generation Optional silicon/laser keyboard Standard 3.5 MHz convex probe Optional 6.5 MHz transvaginal probe Optional 7.5 MHz linear probe Optional video printer Specification Details Product Type Full Digital Ultrasound Scanner Model AX5530 Display 12-inch TFT Color Monitor Image Processing Full Digital TGC 8 Stage Cine Loop Large Capacity Image Storage Permanent Image Storage USB Ports Dual USB Probe Recognition Yes SVGA Output 2 PAL Output 2 Report Generation Automatic Keyboard Silicon / Laser Keyboard Optional Trackball Intelligent Trackball Standard Probe 3.5 MHz Convex Probe Optional Probe 1 6.5 MHz Transvaginal Probe Optional Probe 2 7.5 MHz Linear Probe Optional Printer Video Printer
