All in one portable Endoscopy system YKD-9122H + Trolley YKD-2100

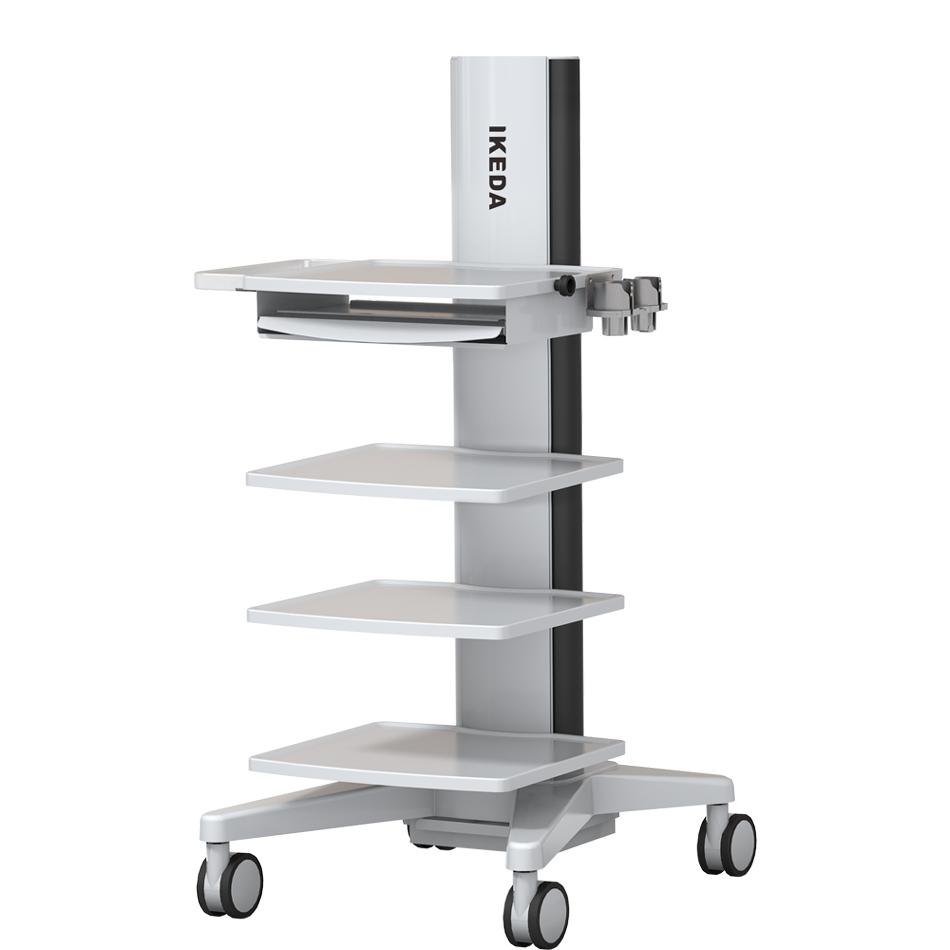

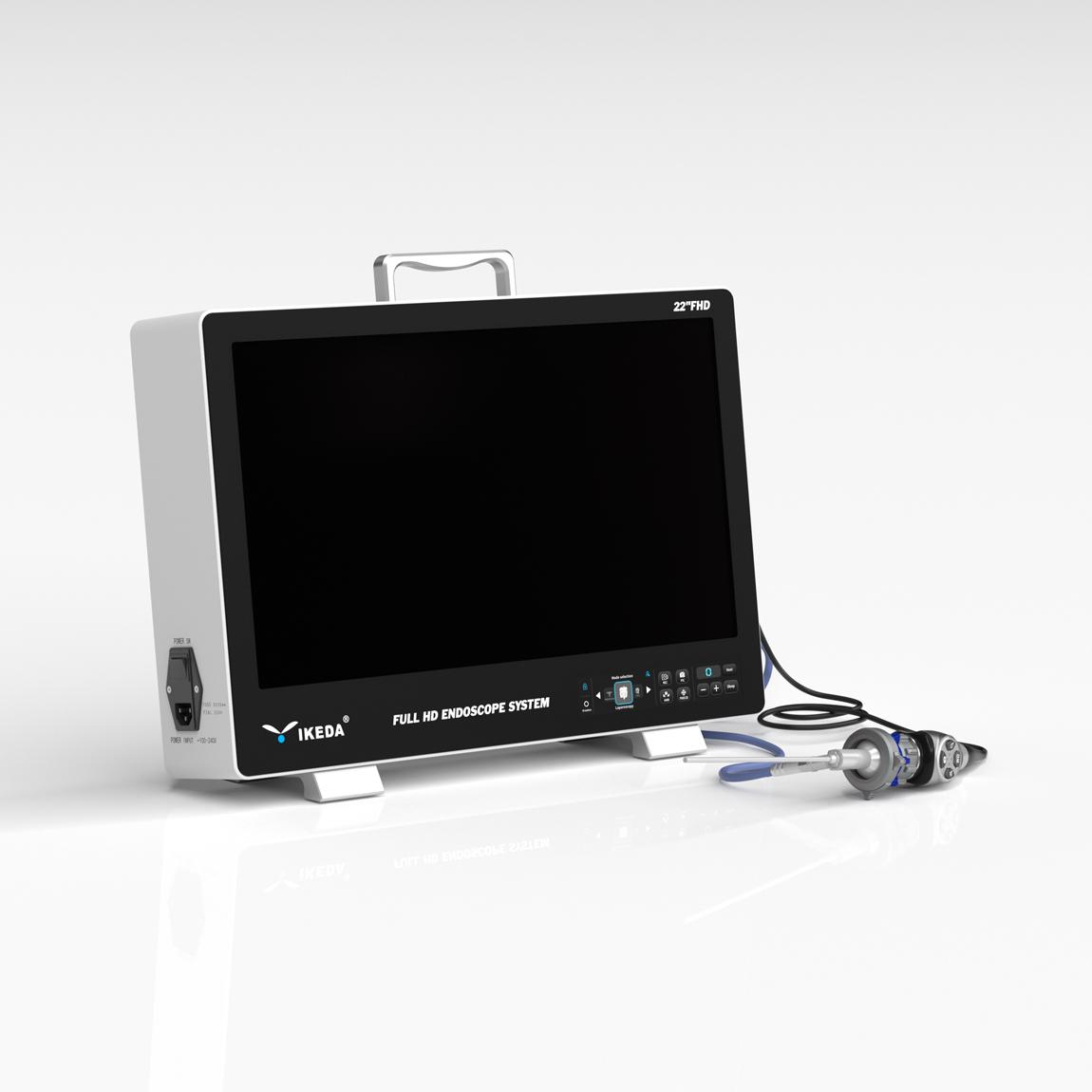

The IKEDA YKD-9122H All-in-One Portable Endoscopy System with YKD-2100 Medical Trolley is a compact Full HD multi-specialty endoscopic imaging system designed to combine essential visualization components into one portable platform. Unlike conventional endoscopy towers that require separate monitor, camera processor and light-source units, the YKD-9122H integrates a 22-inch Full HD medical monitor, camera control system, 80W LED cold light source, image/video recording and playback functionality into a single compact unit. The system provides 1920 × 1080 Full HD imaging at up to 60 fps, using a 1/2.3-inch Sony CMOS sensor. It comes with an IPX8 waterproof Full HD camera head and standard C-mount optical coupler, allowing connection to compatible rigid and flexible endoscopes. When combined with the IKEDA YKD-2100 trolley, the portable unit becomes a mobile endoscopy workstation suitable for movement between operating theatres, procedure rooms, clinics and other departments. Key Features All-in-one portable Full HD endoscopy system 1920 × 1080 Full HD resolution Up to 60 fps 1/2.3" Sony CMOS imaging sensor 22-inch integrated Full HD medical monitor Integrated 80W LED cold light source IPX8 waterproof Full HD camera head Full HD C-mount optical coupler ≥1200 TVL horizontal resolution 60 dB signal-to-noise ratio Progressive scanning Automatic white balance Freeze function Digital zoom in/out Photo capture Full HD video recording Surgical video playback USB image/video storage HDMI, DVI and CVBS outputs Touchscreen + mechanical-button control Multiple language options Multi-specialty endoscopy compatibility Supplied/configured with YKD-2100 mobile medical trolley
