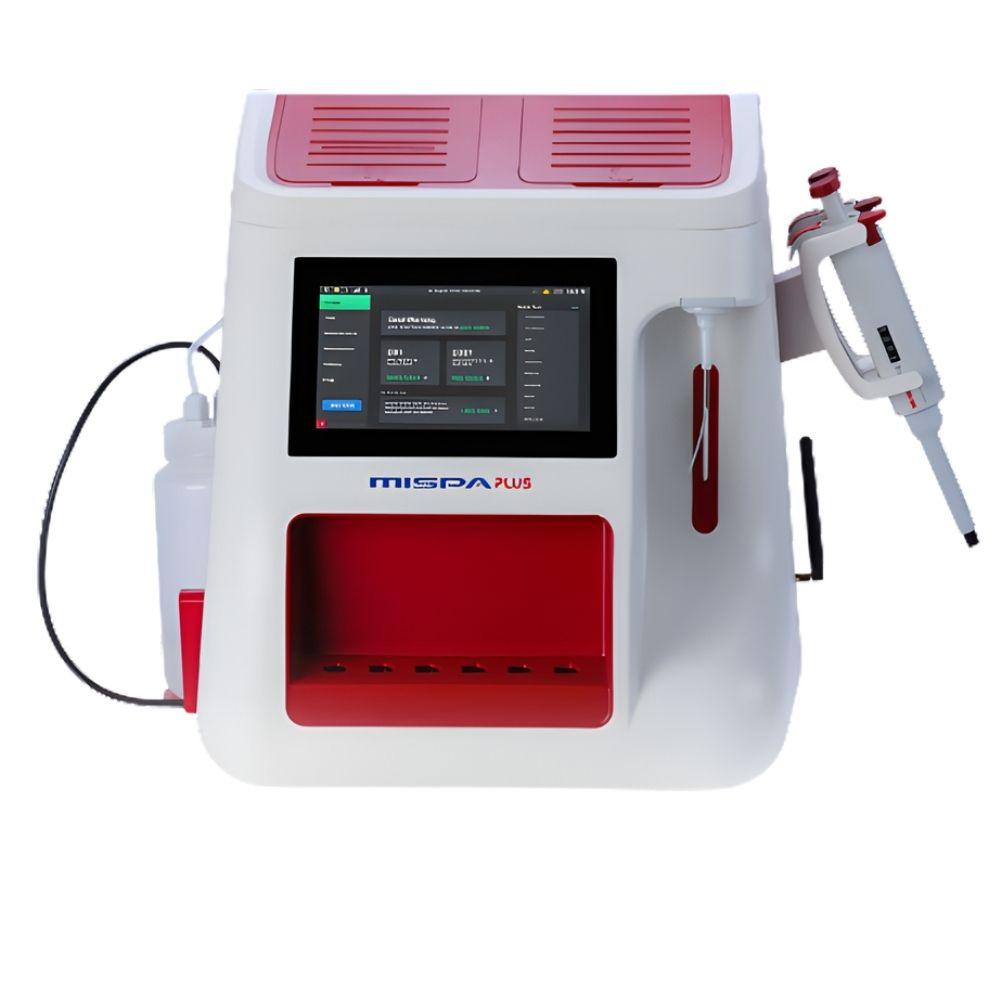

Agappe Mispa Plus Advanced Semi-Automated Biochemistry Analyzer

The Agappe Mispa Plus is an advanced semi-automated biochemistry analyzer engineered for efficient and accurate clinical chemistry testing. Its compact benchtop design makes it suitable for hospital laboratories, diagnostic centres, clinics and independent laboratories with routine chemistry workloads. The analyzer uses Agappe's Penta Lens Photometry system with six standard interference filters at 340, 405, 505, 546, 578 and 630 nm, plus two optional filter positions. It provides a photometric measuring range of 0–3.5 O.D. and uses a silicon photodiode detector. Mispa Plus incorporates an 18 µL flow cell with a 10 mm light path, minimum aspiration volume of 250 µL, carryover-elimination functionality and temperature control at 25°C, 30°C and 37°C. For ease of operation, it features a 7-inch capacitive touchscreen, built-in six-well incubator and high-resolution 57 mm thermal printer. It can store up to 5,000 patient test results and offers 300 programmable test channels. Key Features Advanced semi-automated clinical chemistry analyzer Penta Lens Photometry technology 7-inch capacitive colour touchscreen 10-channel quick test menu 6 standard interference filters 2 additional optional filter positions Spectral wavelengths: 340, 405, 505, 546, 578 & 630 nm 18 µL flow cell with 10 mm light path Minimum aspiration volume: 250 µL 300 programmable test channels Storage for 5,000 patient test results Up to 10 calibration points Three-level QC per test parameter Westgard QC algorithm Levey-Jennings chart Built-in six-well incubator Built-in 57 mm thermal printer LIS compatibility External keyboard connectivity Built-in battery backup Detailed Technical Specifications Specification Agappe Mispa Plus Analyzer Type Semi-Automated Clinical Chemistry Analyzer Technology Penta Lens Photometry Quick Test Menu 10 Channels Standard Filters 6 Wavelengths 340, 405, 505, 546, 578, 630 nm Optional Filter Positions 2 Bandwidth ±5 nm Detector Silicon Photodiode Photometry Range 0–3.5 O.D. Light Source 12 V / 20 W Halogen Lamp Flow Cell Volume 18 µL Light Path 10 mm Minimum Aspiration Volume 250 µL Temperature Control 25°C, 30°C, 37°C Programmable Channels 300 Result Storage 5,000 Test Results Calibration Up to 10 Calibration Points Replicates Up to 3 Per Point QC Westgard Algorithm QC Display Levey-Jennings Chart QC Storage 27,000 Control Results Display 7-inch Capacitive Touchscreen Incubator Built-In, 6 Wells Printer Built-In 57 mm Graphic Thermal Printer Connectivity LIS + External Keyboard Dimensions 450 × 350 × 385 mm (L × W × H) Weight Approx. 9.7 kg Power Supply 115–260 VAC, 47–63 Hz Storage Temperature 10–50°C Working Humidity 20–80% RH Battery Backup 30 minutes in current 2026 literature
