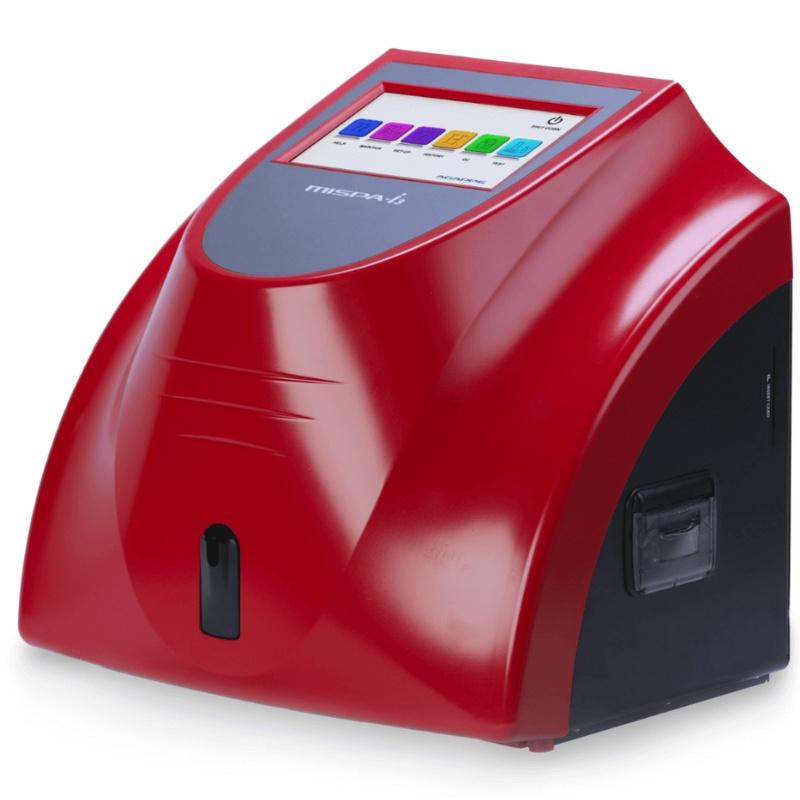

Agappe Mispa i3 Automated Specific Protein Analyzer

The Agappe Mispa i3 is a compact automated cartridge-based specific protein analyzer developed to simplify immunoprotein testing in clinical laboratories, hospitals and diagnostic centres. It uses Nephelometry and Turbidimetry measurement technologies and Agappe's cartridge-based workflow to provide automated sample processing. Its Inject Aspiration System (IAS) aspirates the required sample and reagent volumes, helping reduce manual pipetting while the system performs functions including dilution, washing, mixing, incubation and measurement. The Mispa i3 features a 7-inch colour TFT touchscreen, smart-card calibration, 650 nm laser LED light source, built-in thermal printer, optional handheld barcode reader and storage for 1,000 patient results. The minimum sample volume is 80 µL. Agappe offers a broad assay menu for the system, including tests such as CRP, ASO, RF, HbA1c, Microalbumin, Ferritin, Cystatin C, hsCRP, immunoglobulins, D-Dimer, Vitamin D and Procalcitonin (PCT), depending on the compatible reagent cartridge used. Key Features Automated cartridge-based specific protein analyzer Nephelometry and Turbidimetry measurement Prefilled, test-specific reagent cartridges Inject Aspiration System (IAS) Automatic sample dilution Automatic mixing and incubation Automatic washing Smart Card calibration 650 nm laser LED light source Controlled reaction temperature of 37°C ± 0.2°C 7-inch colour TFT touchscreen Built-in thermal graphic printer Optional handheld barcode reader Stores up to 1,000 results Minimum sample volume of 80 µL RS-232 computer interface Compact benchtop design Wide specific-protein assay menu Detailed Technical Specifications Specification Agappe Mispa i3 Analyzer Type Automated Specific Protein Analyzer System Cartridge-Based Test Method Nephelometry & Turbidimetry Light Source Laser LED, 650 nm Laser Power 5 mW Photodetector Silicon Diode Temperature Control Dry Heating Reaction Temperature 37°C ± 0.2°C Calibration Smart Card Calibration Display 7-inch Colour TFT User Interface Touchscreen Minimum Sample Volume 80 µL Result Storage 1,000 Results Printer Built-in Thermal Graphic Printer Barcode Reader Handheld Reader – Optional PC Interface RS-232 Power Supply 85–265 VAC, 50/60 Hz Power Consumption 100 W Dimensions (L × W × H) 380 × 353 × 352 mm Weight 7.5 kg without battery Reagent System Prefilled IVD Reagent Cartridges
