75L Vertical Pressure Steam Sterilizer

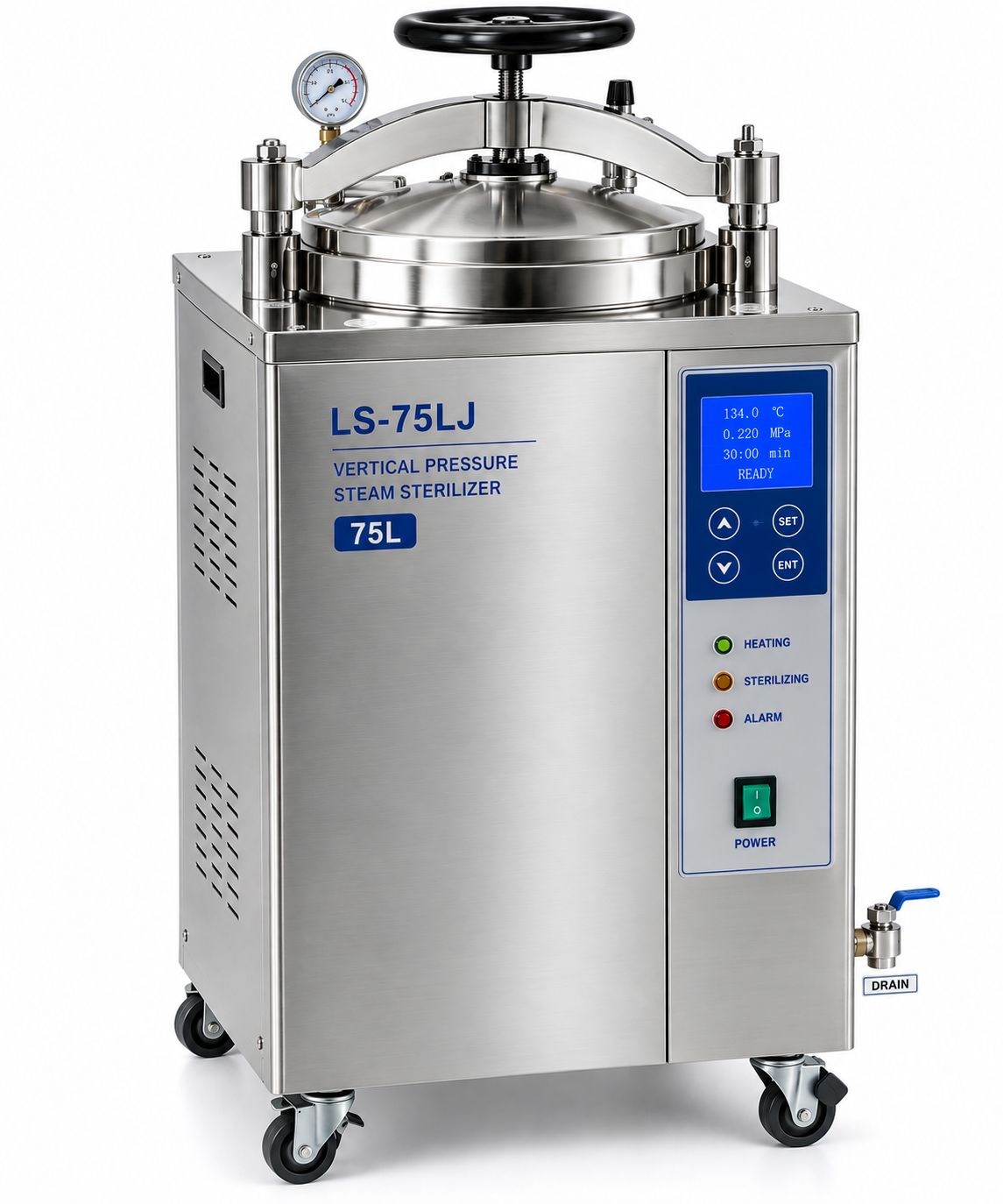

The LS-75LJ 75L Vertical Pressure Steam Sterilizer is designed for high-capacity steam sterilization of suitable medical instruments, dressings, glassware, culture media and other heat-resistant materials in hospitals, clinics, laboratories and research facilities. The unit features a 75-litre sterilizing chamber measuring approximately Ø400 × 600 mm. It operates at a working pressure of 0.22 MPa and a working temperature of 134°C, with a maximum working pressure of 0.23 MPa. The temperature can be adjusted from 105°C to 134°C. The LS-75LJ uses a stainless-steel vertical chamber and incorporates over-temperature, over-pressure and water-shortage protection. Manufacturer references also list automatic shutdown with an audible reminder after sterilization and two stainless-steel sterilizing baskets. Key Features 75-litre vertical steam sterilizer Stainless-steel structure Working temperature up to 134°C Working pressure 0.22 MPa Maximum working pressure 0.23 MPa Adjustable temperature from 105°C to 134°C Timer range 0–60 minutes Double-scale pressure gauge Over-temperature protection Over-pressure protection Water-shortage protection Automatic shutdown after sterilization Audible cycle completion reminder Two stainless-steel sterilizing baskets Vertical space-saving design Specification Details Model LS-75LJ Product Type Vertical Pressure Steam Sterilizer Chamber Volume 75 L Chamber Size Ø400 × 600 mm Working Pressure 0.22 MPa Working Temperature 134°C Maximum Working Pressure 0.23 MPa Temperature Adjustment 105–134°C Temperature Uniformity ≤ ±1°C Timer Range 0–60 min Power 4.5 kW Power Supply AC 220 V 50 Hz Overall Size Approx. 560 × 560 × 980 mm Transport Size Approx. 650 × 630 × 1150 mm Gross / Net Weight Approx. 90 / 70 kg
