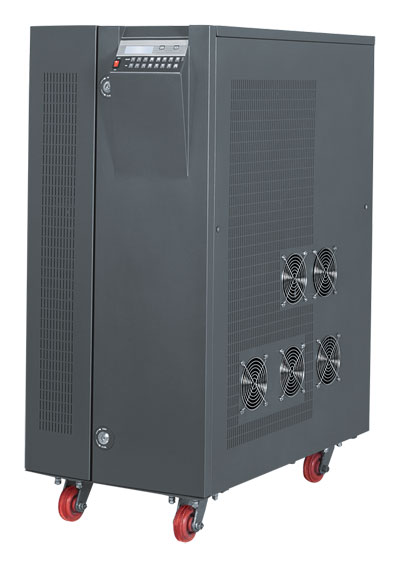

60KVA ONLINE UPS PFC303 with 30nos of 12V/100AH Battery

The ARVI PFC303 60kVA Online UPS is an industrial-grade three-phase input, three-phase output double-conversion UPS designed to deliver clean, regulated and uninterrupted power to critical medical, diagnostic and industrial equipment. ARVI specifically documents the 60kVA PFC303 with a 360VDC bus, DSP-based double-conversion technology, IGBT converter and inverter, power-factor correction and true sine-wave output. ARVI lists CT and MRI scanners among the applications for this UPS series. The configuration you provided includes 30 × 12V/100Ah batteries. When connected as a series string, these provide the required nominal 360VDC battery bank. Key Features 60kVA rated capacity Model: PFC303 True online double-conversion UPS 3-phase input / 3-phase output DSP-based control technology IGBT-based full-bridge converter IGBT-based MPWM inverter Input Power Factor Correction (PFC) 360VDC battery bus Supplied with 30 × 12V/100Ah batteries True sine-wave output Complete galvanic isolation Soft-start power walk-in Input power factor >0.95 at 100% load Output voltage regulation ±1% Generator-compatible design Manual bypass Protection against over/under voltage, overload, short circuit and low battery Designed for continuous operation Suitable for CT/MRI and other critical equipment
