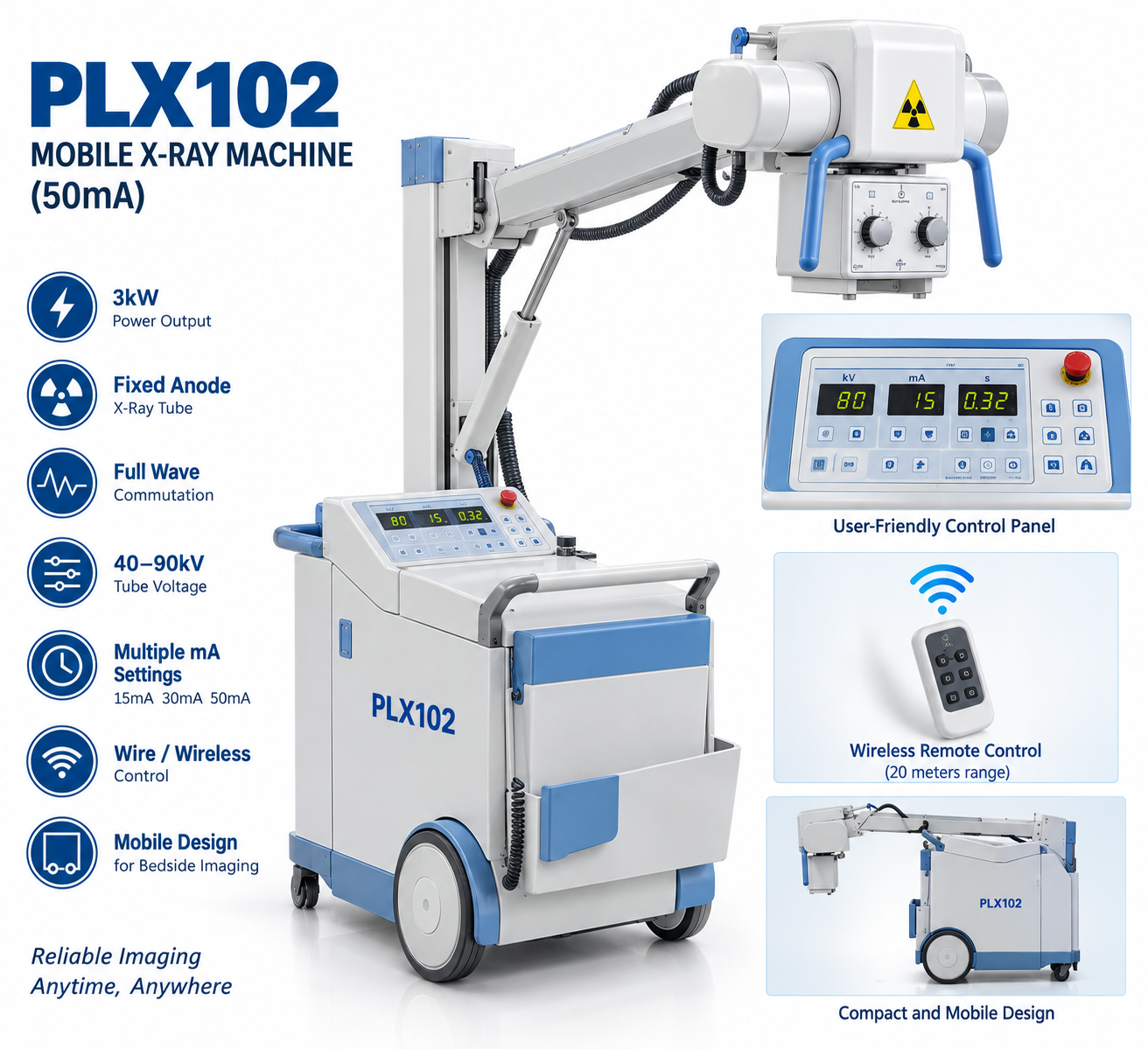

50mA Mobile X-Ray Machine 3kW

The PLX102 50mA Mobile X-Ray Machine is a compact radiographic system designed for bedside, ward, operating-room and general diagnostic imaging applications. Its mobile structure allows the unit to be moved to the patient when transportation to a fixed X-ray room is inconvenient. The system delivers a 3kW power output and uses a fixed-anode X-ray tube with full-wave rectification. Tube voltage is adjustable from 40–90kV, while tube current can be selected at 15mA, 30mA or 50mA depending on the selected kV range. Published PLX102 specifications match these values and also confirm wired and wireless operation. The PLX102 supports exposure times from 0.1 to 6.3 seconds, depending on the tube-current setting, making it suitable for common examinations of the chest, head, limbs and other routine radiographic applications. Key Features 50mA mobile X-ray machine 3kW power output Fixed-anode X-ray tube Full-wave commutation / rectification Tube voltage range of 40–90kV Selectable 15mA 30mA and 50mA tube current Exposure time down to 0.1 second Wired control Wireless remote control Mobile configuration for bedside radiography Suitable for hospital wards and operating rooms Designed for general diagnostic X-ray examinations Specification Details Model PLX102 Product Type Mobile X-Ray Machine Maximum Tube Current 50mA Power Output 3kW X-Ray Tube Fixed Anode Rectification Method Full-Wave Commutation Tube Voltage 40–90kV Tube Current at 50–90kV 15mA Tube Current at 50–90kV 30mA Tube Current at 40–80kV 50mA Exposure Time at 15mA 0.1–6.3 sec Exposure Time at 30mA 0.1–6.3 sec Exposure Time at 50mA 0.1–1.5 sec Power Supply 220V ±10% Internal Resistance ≤1.0Ω Power Requirement Approx. 4kVA Operation Method Wired / Wireless Control
