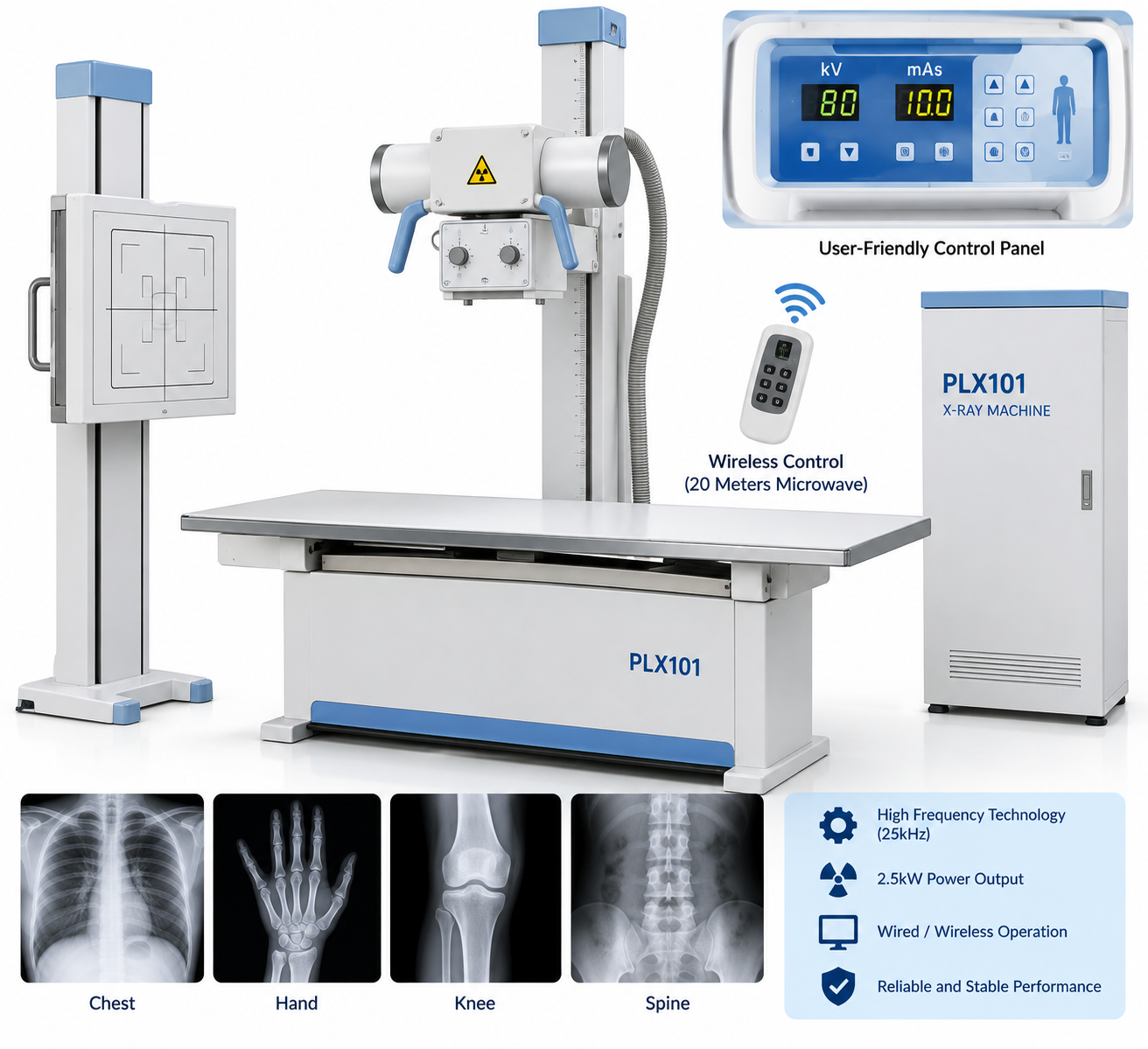

50mA High Frequency X-Ray Machine

The PLX101 50mA High Frequency X-Ray Machine is a diagnostic imaging system designed for general radiographic examinations in hospitals, clinics, diagnostic centres and other medical facilities. It features a 2.5kW high-frequency generator with 25kHz frequency, delivering stable X-ray output for routine imaging procedures. The machine is equipped with a fixed anode X-ray tube and supports a tube voltage range of 40–100kV with 1kV intervals, allowing flexible exposure adjustment based on examination requirements. The PLX101 also offers wired and wireless operation, including 20-meter microwave remote control, giving operators improved convenience and flexibility during imaging procedures. Key Features 50mA high-frequency X-ray machine Power output of 2.5kW High-frequency generator at 25kHz Fixed anode X-ray tube Focus size 1.5 Tube voltage range 40–100kV 1kV interval voltage adjustment mAs range 1.0–160mAs 45 exposure steps Wired and wireless control options 20-meter microwave remote control Suitable for routine diagnostic radiography Stable performance with compact operating system Specification Details Model PLX101 Product Type High Frequency X-Ray Machine Tube Current 50mA Power Output 2.5kW Frequency 25kHz X-Ray Tube Type Fixed Anode Focus 1.5 Tube Voltage 40–100kV Voltage Interval 1kV mAs Range 1.0–160mAs Exposure Steps 45 Steps Power Supply 220V ±10% 50Hz Internal Resistance Requirement ≤1.0Ω Operation Method Wired / Wireless Control Remote Control Distance 20 Meters Microwave Remote Control
