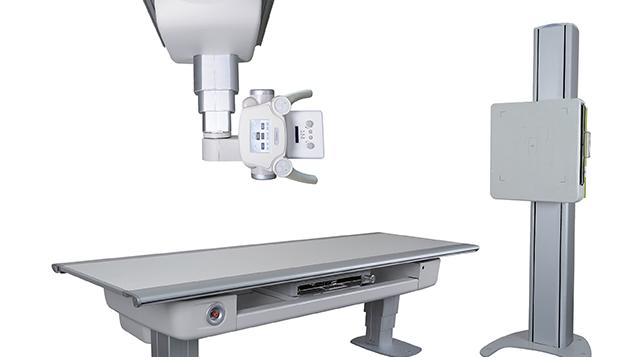

500mA/40KW Direct Digital X-ray machine, Ecoview9plus

The ECORAY ECOVIEW 9 PLUS 500mA/40kW Direct Digital X-Ray Machine is a fixed Digital Radiography (DR) system manufactured by ECORAY in South Korea. It combines a high-frequency X-ray generator with a flat-panel detector (FPD) and digital acquisition workstation for rapid image capture, processing, storage and transmission. Unlike the analog configuration, this direct digital (DR) version captures the X-ray image electronically on the flat-panel detector, allowing the radiographer to view the image on the workstation within seconds without using conventional X-ray film or a CR cassette reader. ECORAY describes the ECOVIEW 9 PLUS as a well-established digital X-ray imaging solution designed for smooth, fast operation in radiography rooms. Key Features Direct Digital Radiography (DR) 40kW high-frequency generator Maximum 500mA Maximum 125kV for the 40kW/500mA configuration Flat-panel detector technology 17 × 17-inch wired FPD available Amorphous Silicon (a-Si) detector technology CsI or Gadox scintillator depending on detector configuration Approx. 2-second image acquisition/preview Digital image acquisition workstation Image processing and patient-study management DICOM 3.0 compatibility PACS connectivity/configuration support Anatomical Programming (APR) 288 APR programs AEC available as an option Floor-mounted radiography configuration Four-way floating-top examination table Upright Bucky stand Suitable for general radiography examinations
