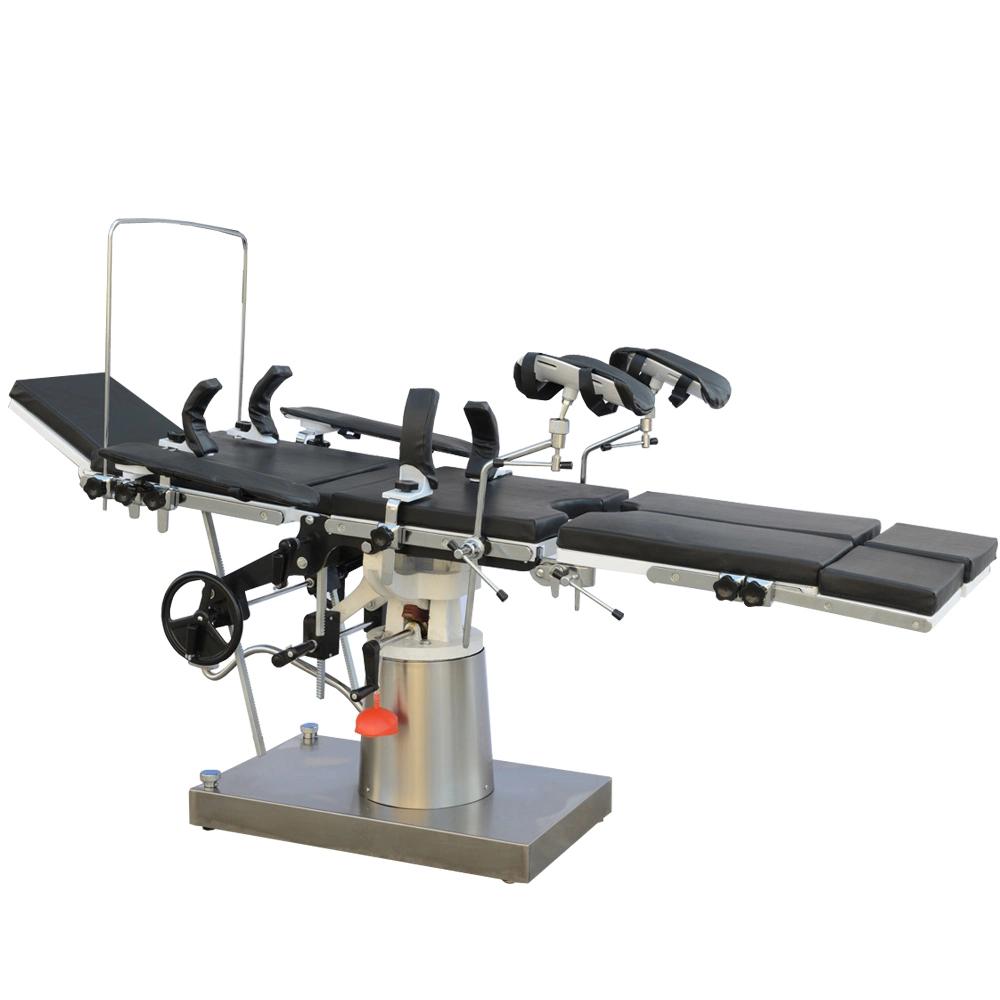

3001 Hydraulic Operating Table

The 3001 Hydraulic Operating Table is a multi-purpose surgical table designed for a wide range of procedures in hospital operating theatres. It uses hydraulic height adjustment and mechanical positioning to support safe, flexible patient positioning during surgery. The table measures 2100 × 480 mm and has a height range of 720–920 mm. It supports 30° reverse Trendelenburg, 20° Trendelenburg, 18° lateral tilt, head-section adjustment of 45° up and 90° down, back-section adjustment of 75° up and 18° down, and a 120 mm kidney bridge. Published specifications for 3001-series hydraulic operating tables closely match these dimensions and movements. Key Features Hydraulic height adjustment Multi-purpose surgical operating table 2100 × 480 mm tabletop Height range of 720–920 mm 30° reverse Trendelenburg 20° Trendelenburg 18° lateral tilt Head section adjustable 45° up / 90° down Back section adjustable 75° up / 18° down 120 mm kidney bridge elevation Suitable for general and specialist surgical procedures Designed for stable patient positioning Manual mechanical controls with hydraulic lifting Specification Details Model 3001 Product Type Hydraulic Operating Table Overall Length 2100 mm Overall Width 480 mm Height Range 720–920 mm Reverse Trendelenburg 30° Trendelenburg 20° Lateral Tilt 18° Head Section Up/Down 45° / 90° Back Section Up/Down 75° / 18° Kidney Bridge Elevation 120 mm Height Adjustment Hydraulic
