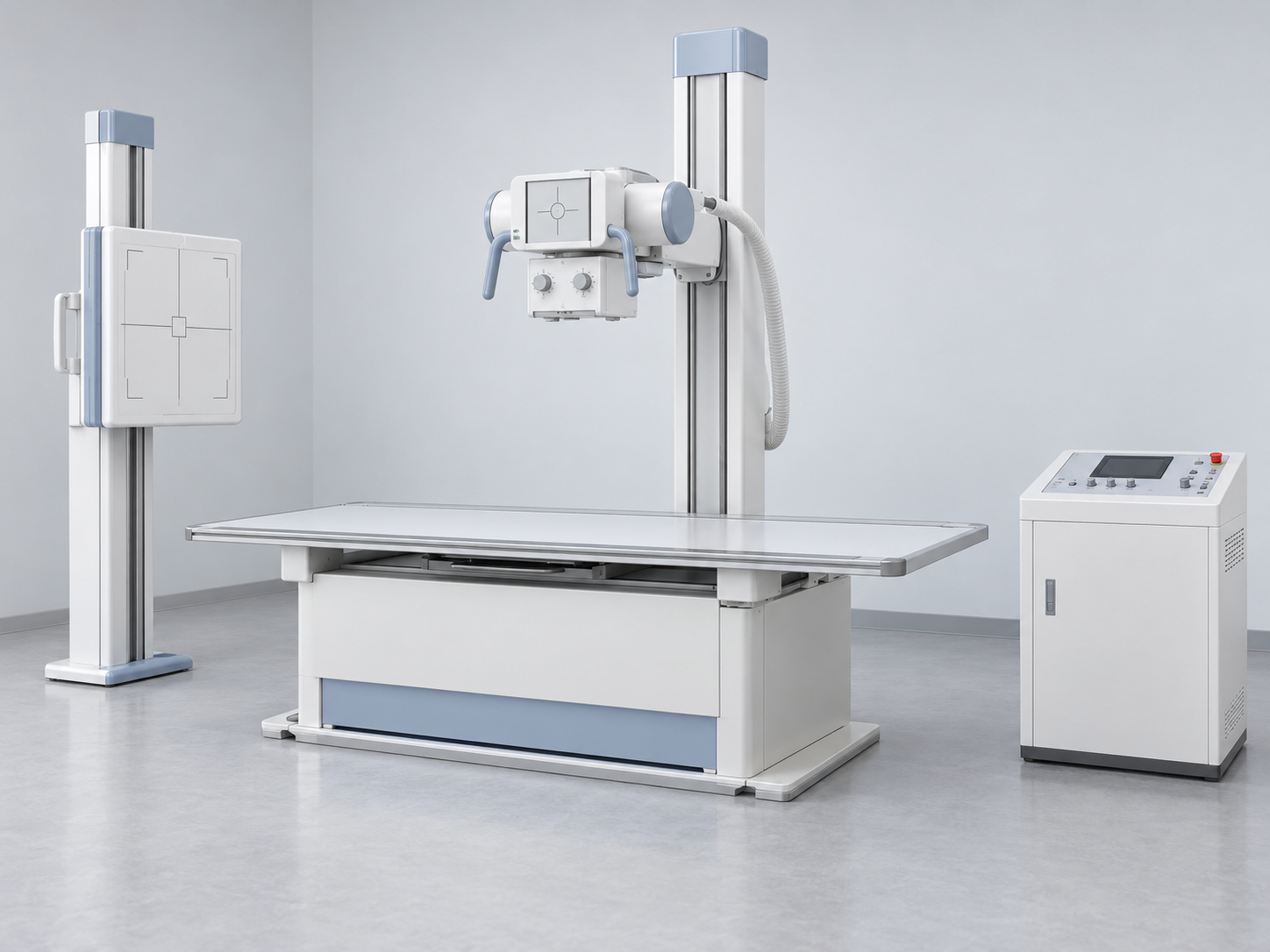

100mA Diagnostic X-Ray Machine

The WT-100BY 100mA Diagnostic X-Ray Machine is designed for routine radiographic imaging in hospitals, clinics, diagnostic centres and medical imaging departments. The system provides selectable tube current levels of 16mA, 32mA, 63mA and 100mA, allowing the operator to adjust exposure according to the examination requirement. It supports an X-ray tube voltage range of 50–90kVp and an electronic exposure timer from 0.08 to 6.3 seconds in 20 steps. The WT-100BY is equipped with an XD4-2.9/100 X-ray tube, making it suitable for common general radiography applications where a 100mA system is appropriate. Key Features 100mA diagnostic X-ray machine Selectable tube current settings 16mA 32mA 63mA and 100mA options Tube voltage range of 50–90kVp Electronic exposure timer Timer range from 0.08–6.3 seconds 20 exposure-time steps XD4-2.9/100 X-ray tube Suitable for general diagnostic radiography Designed for hospitals clinics and diagnostic centres Specification Details Model WT-100BY Art. No. XRY-100M Product Type 100mA Diagnostic X-Ray Machine Maximum Rated Current 100mA Selectable Tube Current 16mA / 32mA / 63mA / 100mA X-Ray Tube Voltage 50–90kVp Exposure Timer Range 0.08–6.3 sec Timer Steps 20 Timer Type Electronic X-Ray Tube Specification XD4-2.9/100
